Your 1st gRPC mock

๐Ÿ—“๏ธ Last updated on June 20, 2024 | 10 | Improve this page

Overview

This tutorial is a step-by-step walkthrough on how to use a gRPC / Protocol Buffers specification to get mocks for your gRPC Service. This is hands-on introduction to gRPC Conventions reference that brings all details on conventions being used.

We will go through a practical example based on the famous PetStore API. Weโ€™ll build the reference petstore-v1.proto file by iterations, highlighting the details to get you starting with mocking gRPC on Microcks.

To complete this tutorial, you will need this two additional tools:

  • Postman to define sample data that will be used by your mocks,
  • grpcurl to interact with and check your mocks are working as expected (this is optional as you can also do this using Postman but I prefer the command line ๐Ÿ˜‰)

Ready? Go! ๐Ÿ’ฅ

1. Setup Microcks and Protobuf skeleton

First mandatory step is obviously to setup Microcks ๐Ÿ˜‰. For gRPC usage, we don’t need any particular setup and the simple docker way of deploying Microcks as exposed in Getting started is perfectly suited.

๐Ÿšจ As we’re using new features that may not be released yet, we recommend using the nightly version for this tutorial. Moreover, this time we need to bind the gRPC port of Microcks (running on port 9090) to one local port. We may choose 8686 for that.

Run this command below to get your Microcks instance ready:

docker run -p 8585:8080 -p 8686:9090 -it --rm quay.io/microcks/microcks-uber:nightly-native

This could be on other ports if 8585 or 8686 are already used on your machine.

Following the getting started, you should have a Microcks running instance on http://localhost:8585 with a gRPC server available on localhost:8686.

Now let’s start with the skeleton of our Protobuf contract for the Petstore Service. We’ll start with the definition of three different messages:

  • Pet is the data structure that represents a registered pet in our store - it has an id and a name,
  • PetsResponse is a structure that allows returning many pets as a service method result,
  • AllPetsRequest is an empty structure that represents the input type of our first method.

We also have the definition of one getPets() method that allow returning all the pets in the store. This is over-simplistic but enough to help demonstrate how to do things. Here’s the protobuffer contract:

syntax = "proto3";

package org.acme.petstore.v1;

message Pet {
    int32 id = 1;
    string name = 2;
}

message AllPetsRequest {}

message PetsResponse {
    repeated Pet pets = 1;
}

service PetstoreService {
    rpc getPets(AllPetsRequest) returns (PetsResponse);
}

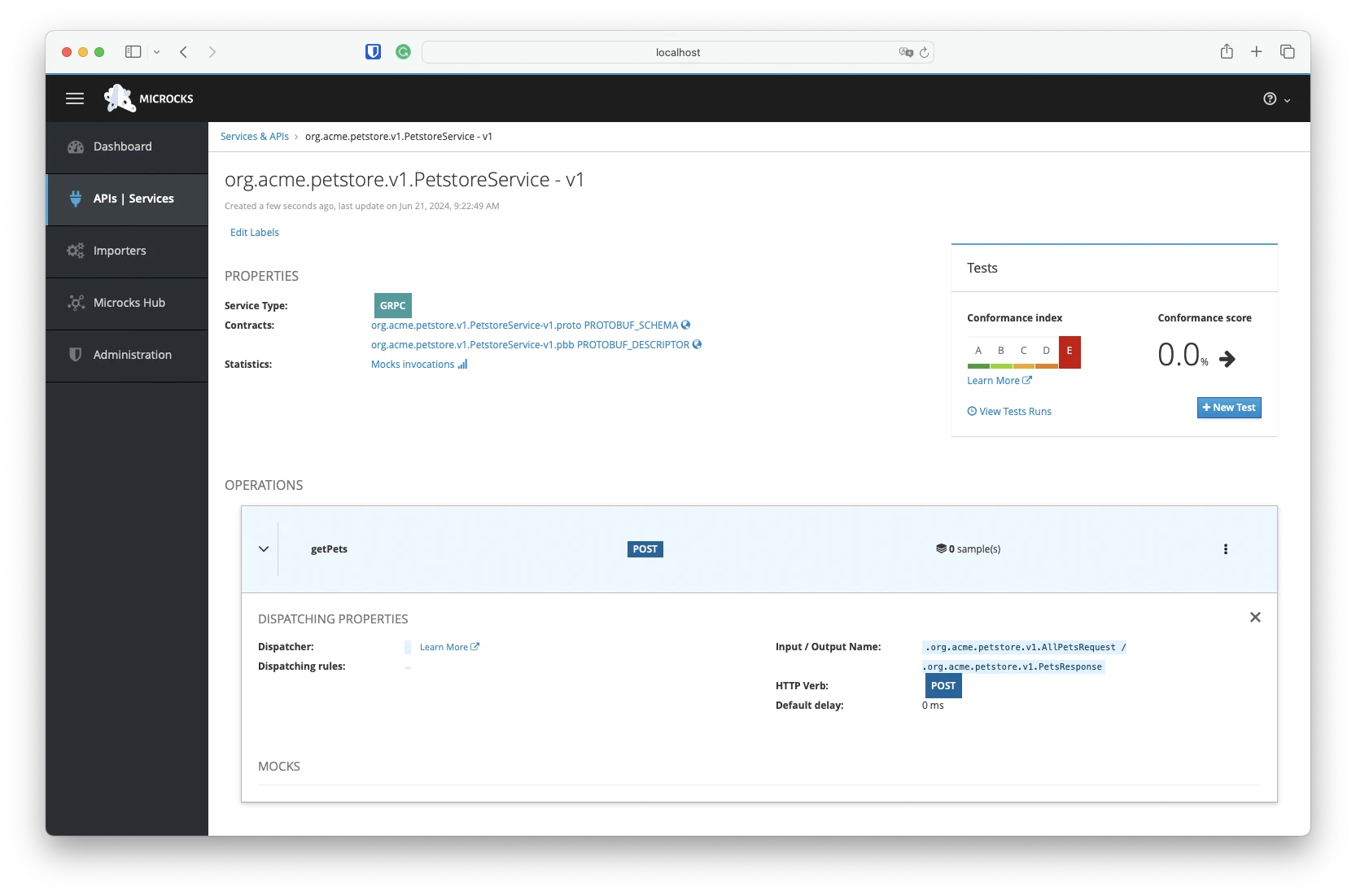

From now, you can save this as a file on your disk, then go to the Importers page in the left navigation menu and choose to Upload this file. The file should import correctly and you should receive a toast notifiation on the upper right corner. Then, while browsing APIs | Services, you should get acess to the following details in Microcks:


2. Specifying mock data with Postman

We have loaded a gRPC / Protobuf definition in Microcks that correctly discovered the structure of your service, but you have no sample data loaded at the moment. We’re going to fix this using Postman and create a Collection to hold our mock data.

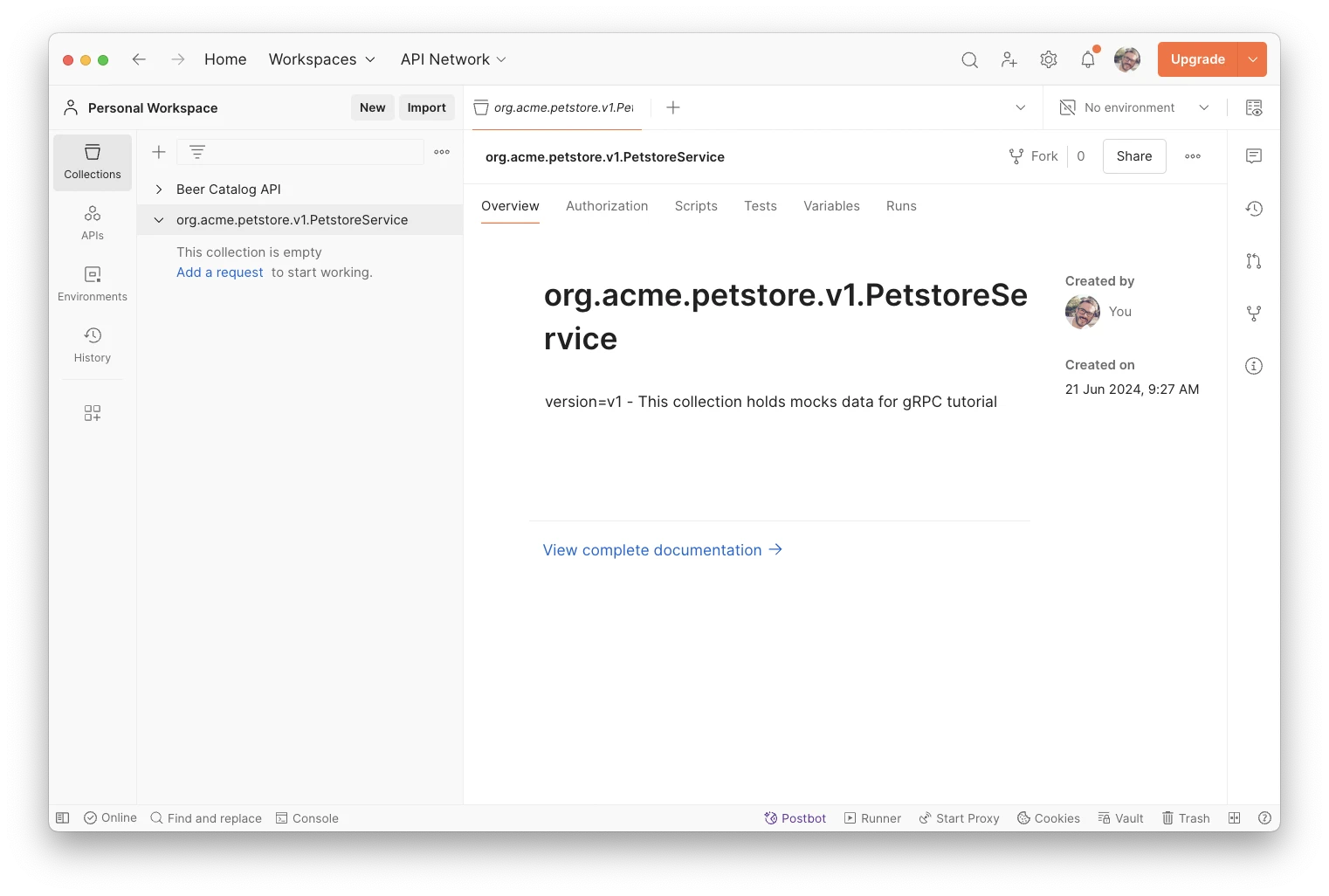

In your Postman Workspace, start creating a new standard and empty Collection. As one of our conventions , your Collection must have the full name of your gRPC Service: org.acme.petstore.v1.PetstoreService. The documentation summary you put in the Collection must also start with version=v1 like illustrated below:


Having the same name and the same version in the Postman Collection is very important as it will allow Microcks to merge this information with the one from the Protobuf file.

๐Ÿค” You may wonder the origin of this v1 version? It’s another convention that follows gRPC versioning best practices. As there’s no pre-defined way to specify the version of a Protobuf file, the community agreed that the last part of package name will be the version. Microcks has extracted this information from org.acme.petstore.v1. Read more on the gRPC conventions Microcks is following.

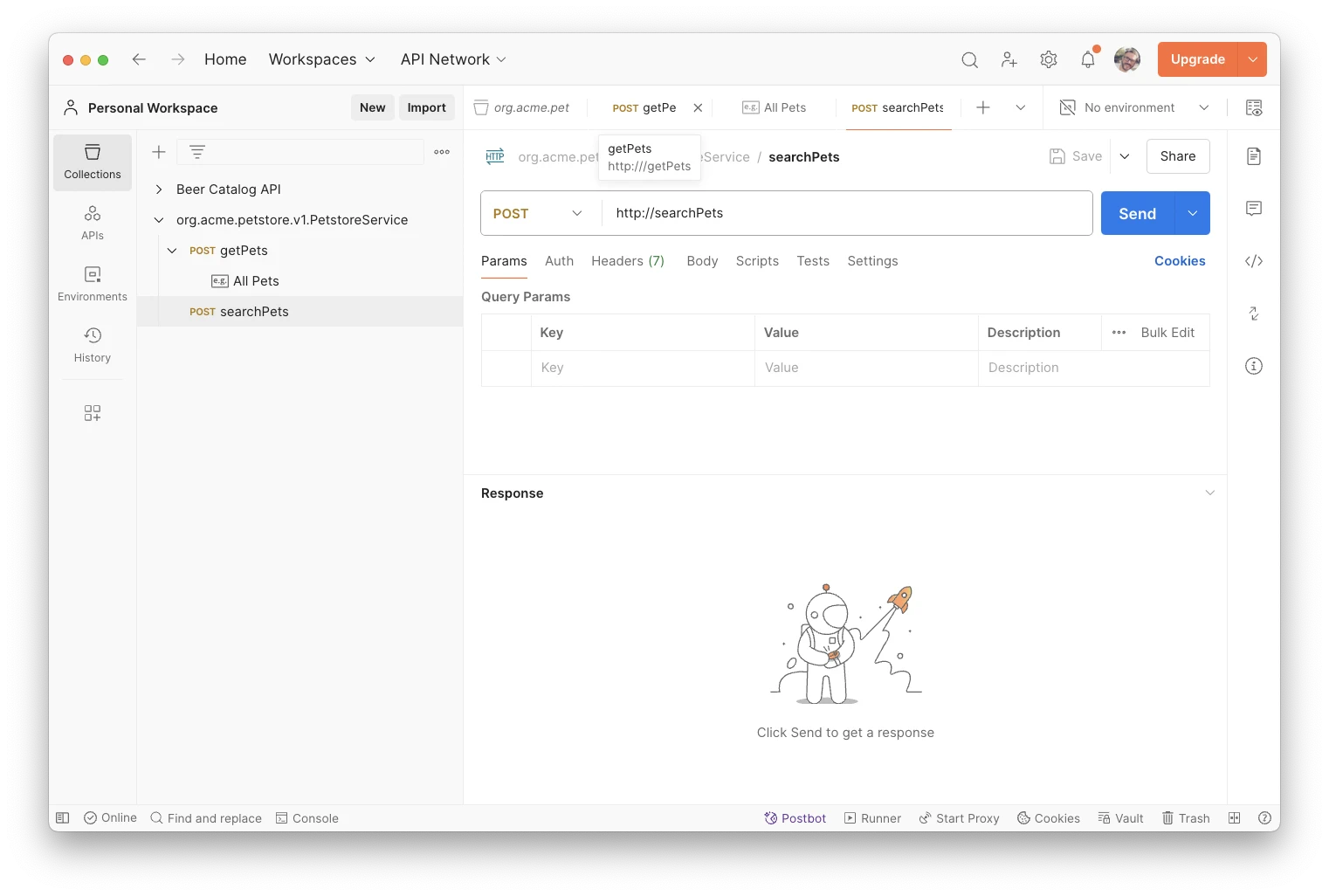

From now, we will use this Collection to specify sample data for our mock. This is a three step process that is illustrated below in the slider (you can the blue dots to freeze the swiper below):

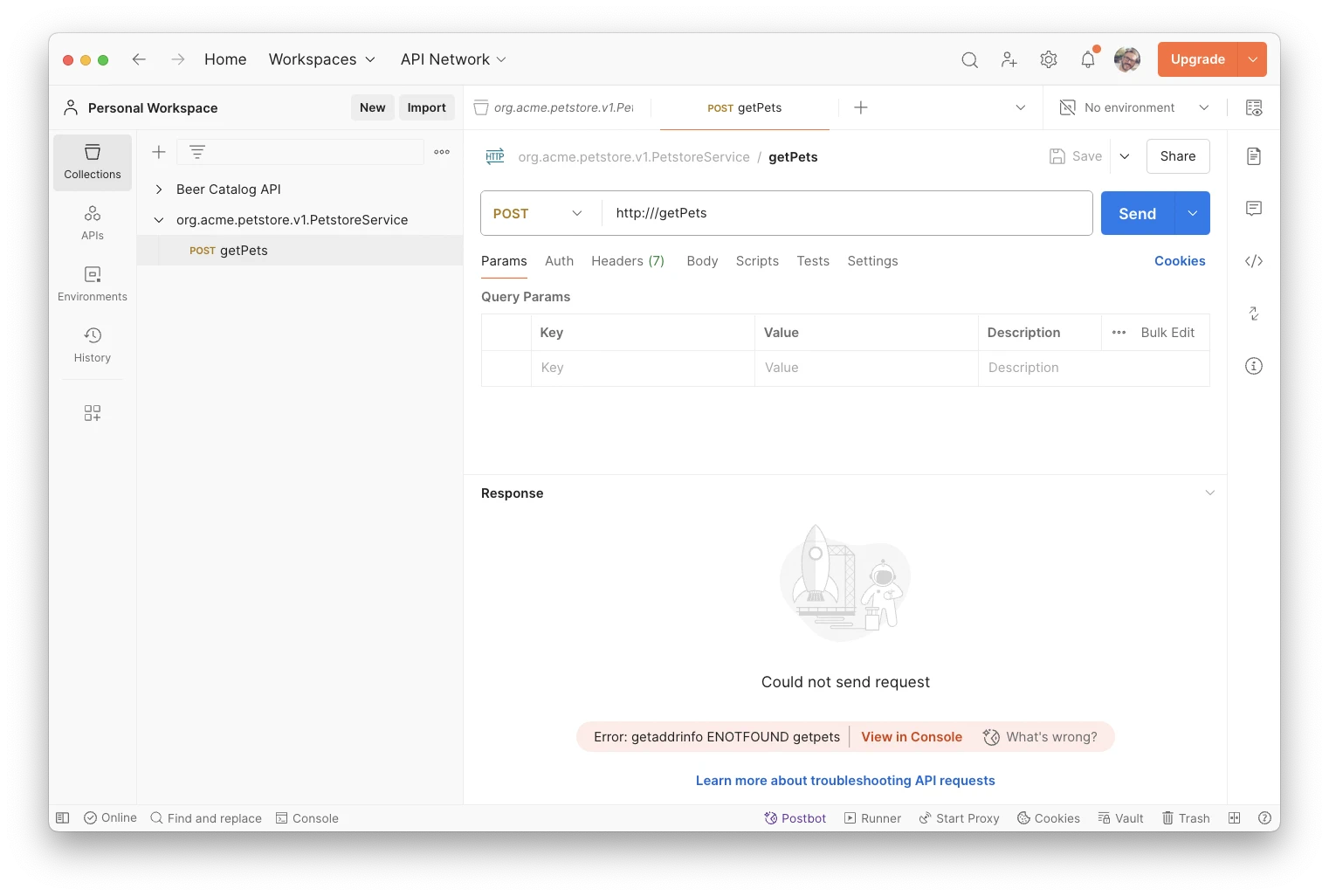

1๏ธโƒฃ Add a new Request named getPets. Change this request to be a POST request and update its URL to http:///getPets. This will ensure Microcks will asoociate it to the correct gRPC method,

2๏ธโƒฃ On this request, add a new example with the name of your choice. Edit this example to put an empty object as the request body ({}) and a list of Pets as the result body. Your can copy/paste the JSON snippet below:

{ "pets": [ { "id": 1, "name": "Zaza" }, { "id": 2, "name": "Tigress" }, { "id": 3, "name": "Maki" }, { "id": 4, "name": "Toufik" } ] }

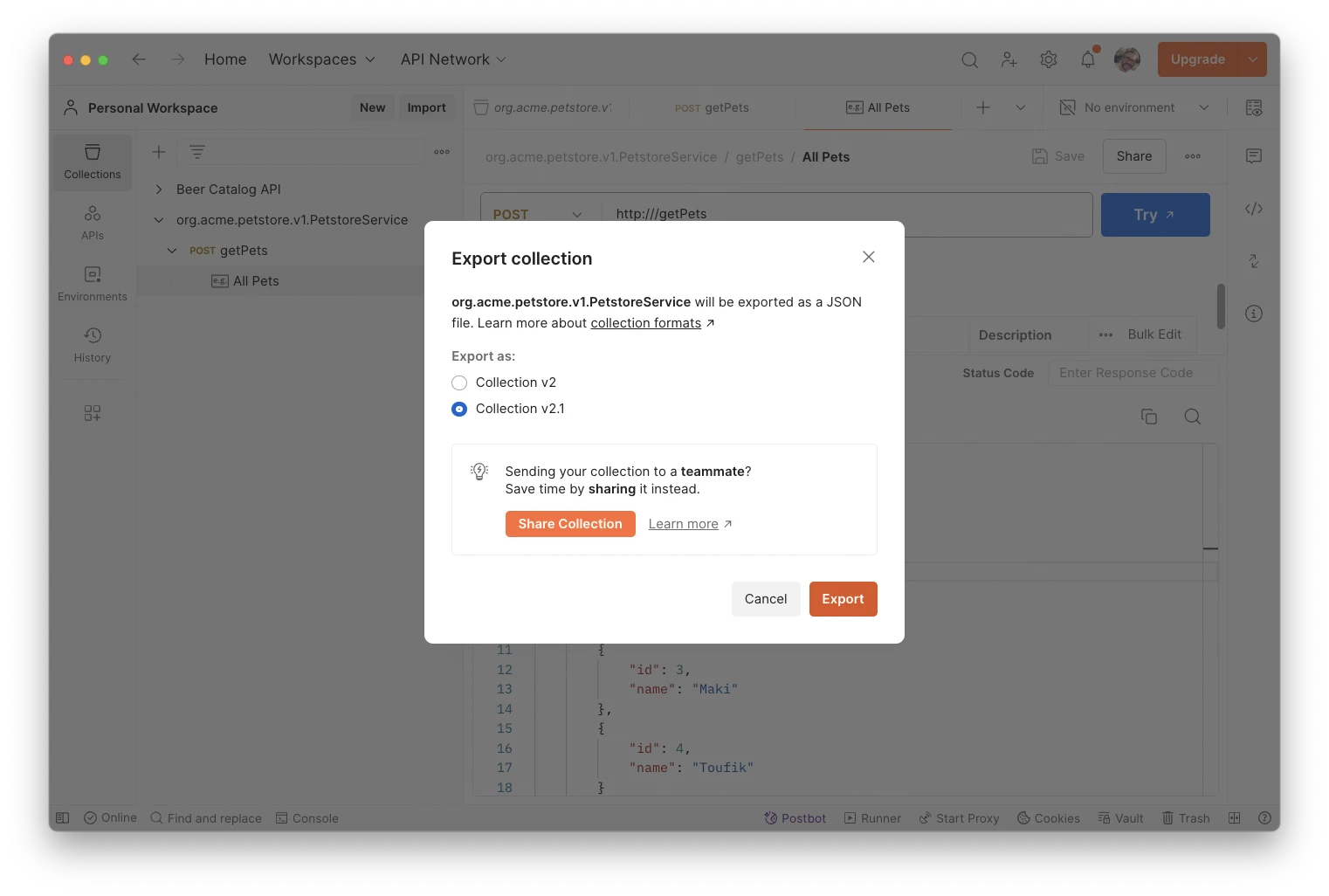

3๏ธโƒฃ Finally, export your Collection to a local file with the name of your choice. You can find ours in the PetstoreService.postman.json file.


๐Ÿšจ Take care of saving your edits before exporting!

3. Basic operation of gRPC service

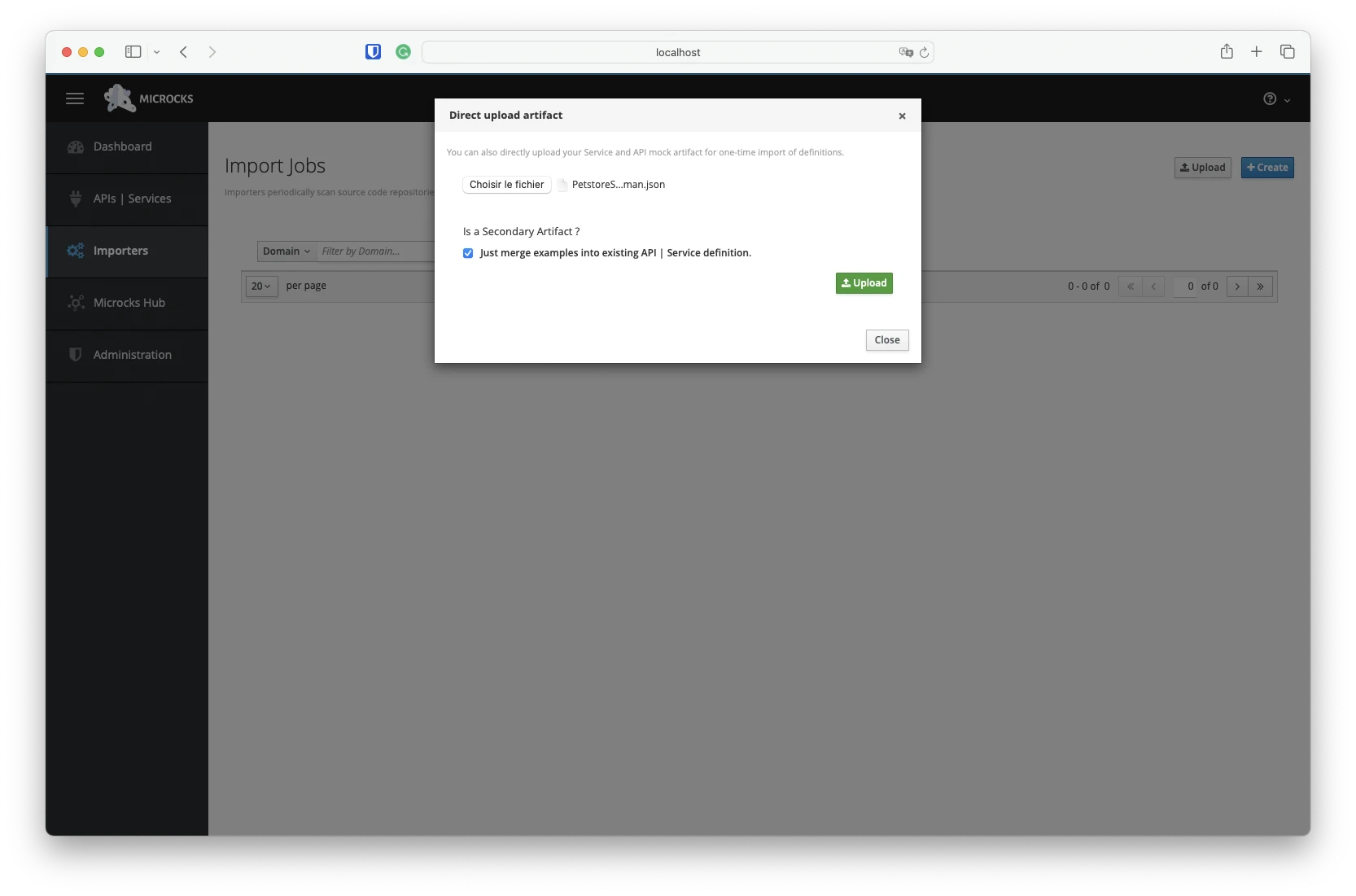

It’s now the moment to import this Postman Collection back in Microcks and see the results! Go to the Importers page in the left navigation menu and choose to Upload this file. Proceed with care because this time you need to tick the box telling Microcks to consider the Collection as a Secondary Artifact like below:

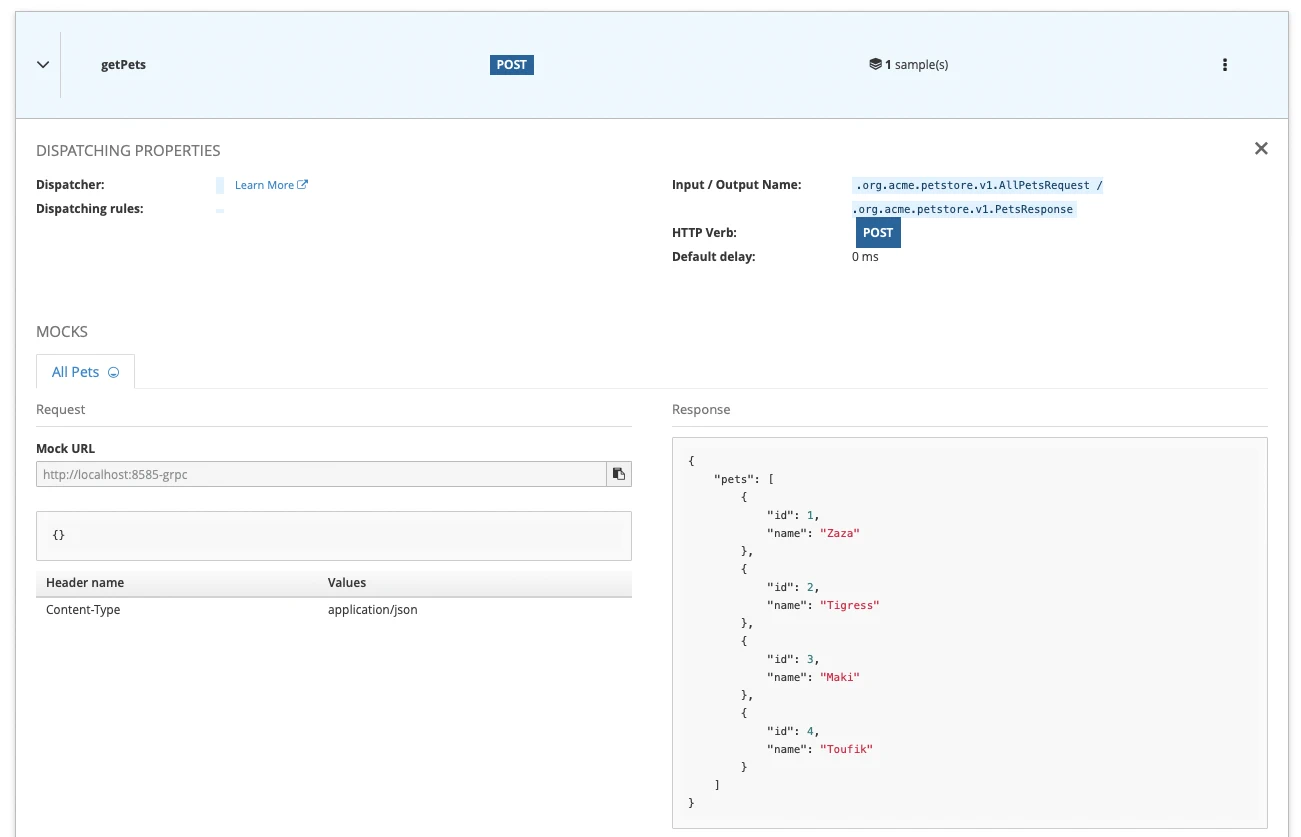

Your gRPC service details should now have been updated with the samples you provided via the Postman Collection:


๐Ÿค” You may have noticed in the above screenshot that dispatching properties are empty for now. This is normal as we’re on a basic operation with no routing logic. We’ll talk about dispatchers in next section.

Microcks has found All Pets as a valid sample to build a simulation upon. A mock URL has been made available but remember that in our case, we exposed the gRPC port to 8686. We can use this to test the service method as demonstrated below with a grpcurl command:

$ grpcurl -plaintext -d '{}' localhost:8686 org.acme.petstore.v1.PetstoreService/getPets
{
  "pets": [
    {
      "id": 1,
      "name": "Zaza"
    },
    {
      "id": 2,
      "name": "Tigress"
    },
    {
      "id": 3,
      "name": "Maki"
    },
    {
      "id": 4,
      "name": "Toufik"
    }
  ]
}

This is your first gRPC mock ๐ŸŽ‰ Nice achievement!

4. Using request arguments in gRPC method

Let’s make things a bit more spicy by adding request arguments. Now assume we want to provide a simple searching method to retrieve all pets in store using simple filter. We’ll end up adding a new searchPets() method in your API. Of course, we’ll have to define a new PetSearchRequest input message so that users will specify name=zoe to get all the pets having zoe in name.

So we’ll add new elements in our Protobuf document like below: a new message and we complete the service with a new rpc method:

message PetSearchRequest {
    string name = 1;
}

service PetstoreService {
    rpc getPets(AllPetsRequest) returns (PetsResponse);
    rpc searchPets(PetSearchRequest) returns (PetsResponse);
}

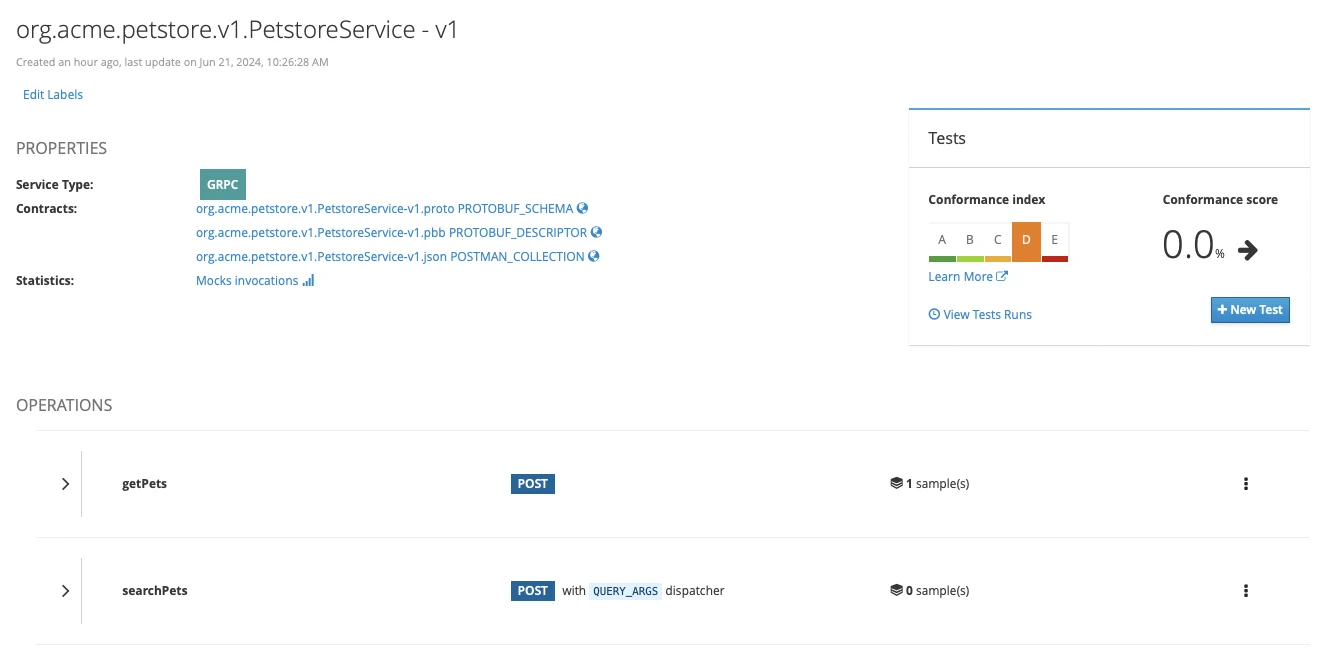

You can then import the updated Protobuf file into Microcks using the upload dialog but without ticking the box as we want to update our service definition and not simply add test data. You can check the updated result:


What about the dispatcher property we mentioned earlier? You can see that it now have the QUERY_ARG value. Because of the presence of arguments in the new method definition, Microcks has inferred a routing logic based on this argument. If you get access to the operation details, you’ll see that the associated rule is name. Microcks will use the name to route incoming gRPC request.

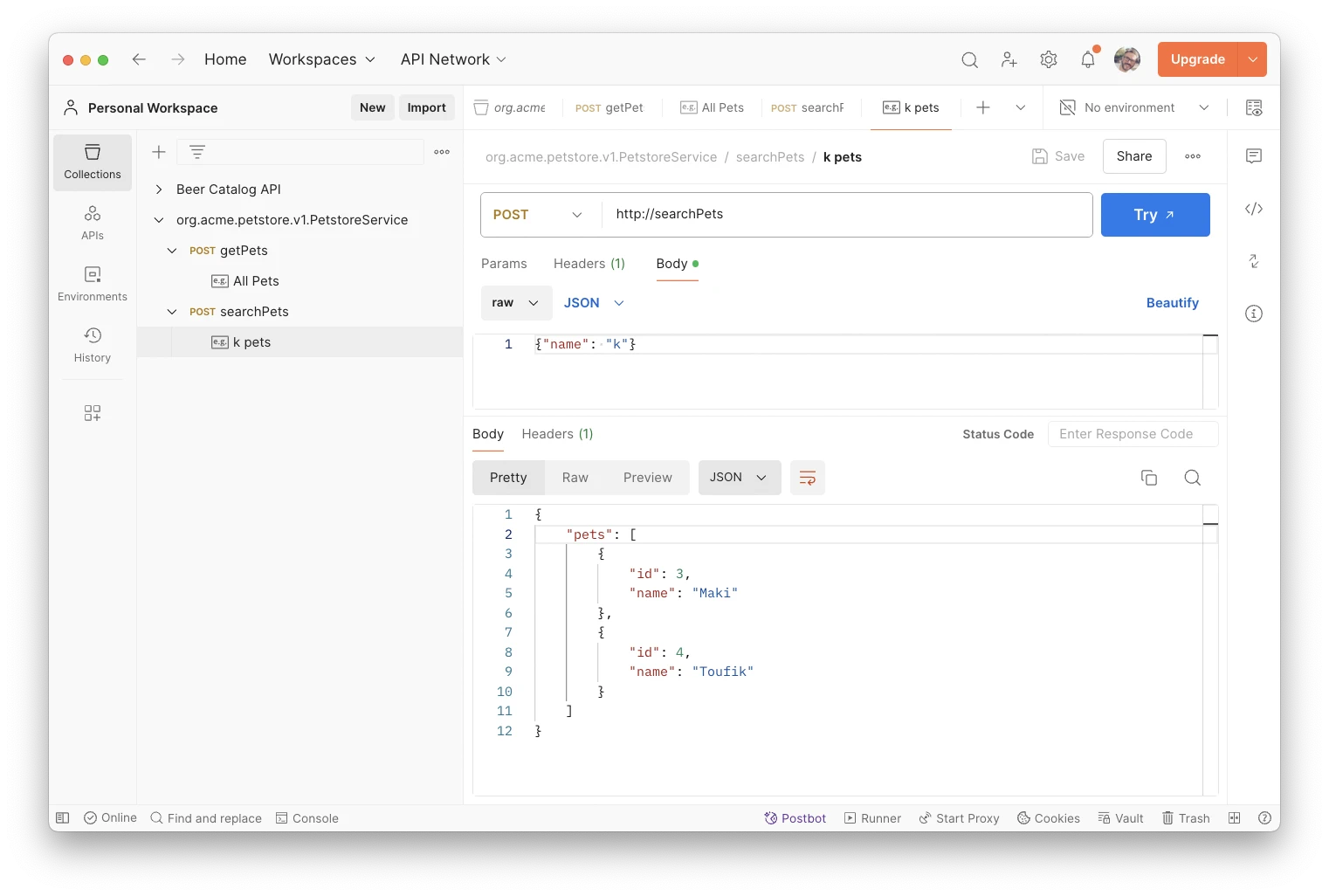

Let’s complete our Postman Collection with a new request for the new searchPets method and a new example for searching for pets having a k in their name:


๐Ÿšจ Take care of saving your edits before exporting!

Import this updated Postman Collection back in Microcks - this time you need to tick the box - and see the results:


Let’s try the new gRPC method mock with this command:

$ grpcurl -plaintext -d '{"name": "k"}' localhost:8686 org.acme.petstore.v1.PetstoreService/searchPets
{
  "pets": [
    {
      "id": 3,
      "name": "Maki"
    },
    {
      "id": 4,
      "name": "Toufik"
    }
  ]
}

๐ŸŽ‰ Fantastic! We now have a mock with routing logic based on request arguments.

๐Ÿ’ก Microcks dispatcher can support multiple arguments to find appropriate response to an incoming request. In that case, the dispatcher rule will have the form of argu_1 && arg_2 && arg_3.

๐Ÿ› ๏ธ As an exercice to validate your understanding, just add a new i pets sample so that when user specify a filter with value i, the 3 correct cats are returned (Tigresse, Maki and Toufik)

5. Mocking a creation operation

And now the final step! Let’s deal with a new method that allows registering a new pet within the Petstore. For that, you’ll typically have to define a new createPet() method on the PetstoreService. In order to be meaningful to the user of this operation, a mock would have to integrate some logic that reuse contents from the incoming request and/or generate sample data. That’s typically what we’re going to do in this last section ๐Ÿ˜‰

Let’s add such a new operation into the Protobuf file by adding the following elements:

message PetNameRequest {
    string name = 1;
}

service PetstoreService {
    rpc getPets(AllPetsRequest) returns (PetsResponse);
    rpc searchPets(PetSearchRequest) returns (PetsResponse);
    rpc createPet(PetNameRequest) returns (Pet);
}

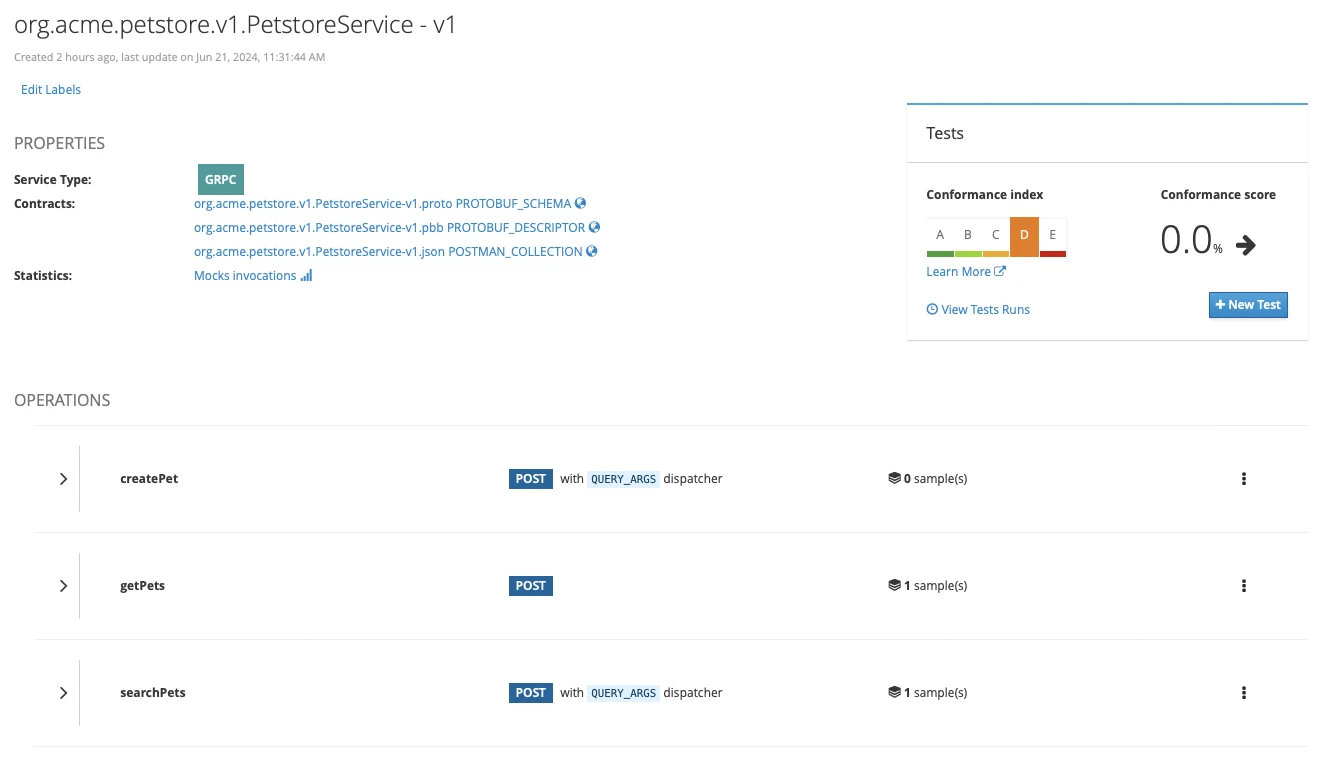

You can then import the updated Protobuf file into Microcks using the upload dialog but without ticking the box as we want to update our service definition and not simply add test data. You can check the updated result:


As said above, we want to define a smart mock with some logic. Thankfully, Microcks has this ability to generate dynamic mock content . When defining our example in the Postman Collection, we’re are going to use two specific notations that are:

  • {{ randomInt(5,10) }} for asking Microcks to generate a random integer between 5 and 10 for us (remember: the other pets have ids going from 1 to 4),
  • {{ request.body/name }} for asking Microcks to reuse here the name property of the request body. Simply.

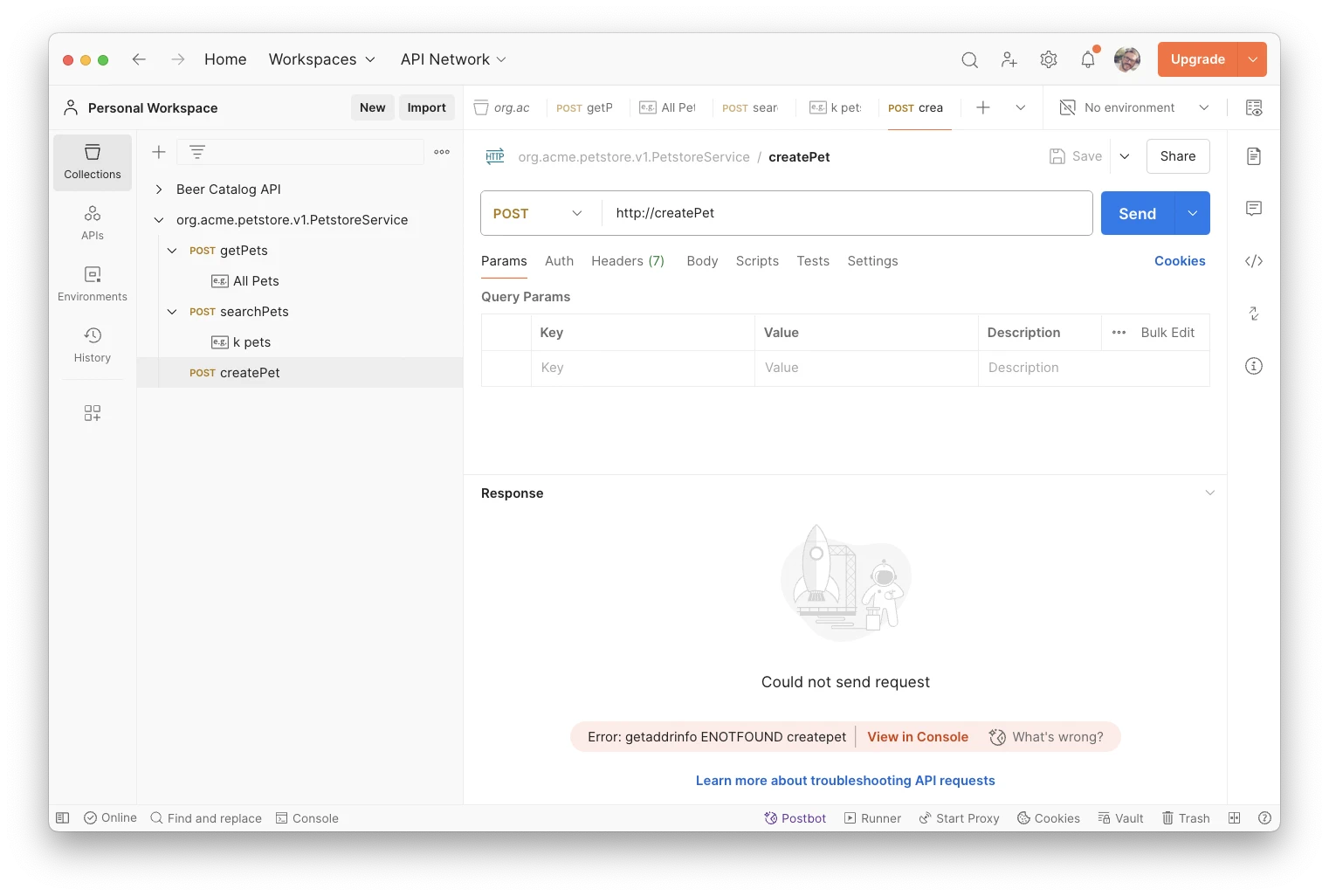

Let’s complete our Postman Collection with a new request for the new createPet method and a new example named new pet:


๐Ÿšจ Take care of saving your edits before exporting!

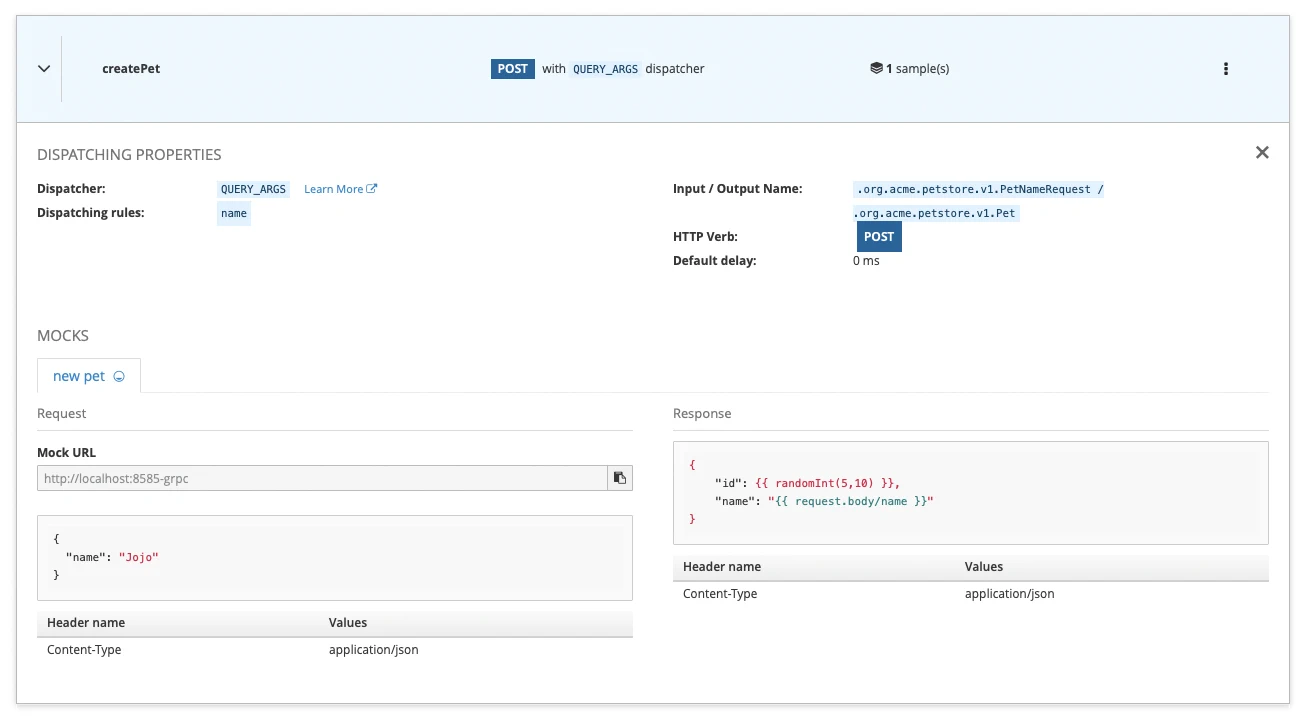

Import this updated Postman Collection back in Microcks - this time you need to tick the box - and verify the results:


Let’s now finally test this new method using some content and see what’s going on:

$ grpcurl -plaintext -d '{"name": "Rusty"}' localhost:8686 org.acme.petstore.v1.PetstoreService/createPet
{
  "id": 6,
  "name": "Rusty"
}

As a result we’ve got our pet name Rusty being returned with a new id being generated. Ta Dam! ๐Ÿฅณ

๐Ÿ› ๏ธ As a validation, send a few more requests changing your pet name. You’ll check that given name is always returned and the id is actual random. But you can also go further by defining an advanced dispatcher that will inspect your request body content to decide which response must be sent back. Very useful to describe different creation or error cases!

Wrap-up

In this tutorial we have seen the basics on how Microcks can be used to mock responses of a gRPC service. We introduced some Microcks concepts like examples, dispatchers and templating features that are used to produce a live simulation. This definitely helps speeding-up the feedback loop on the ongoing design as the development of a consumer using this service.

Thanks for reading and let us know what you think on our Discord chat ๐Ÿ™
