In order to use gRPC in Microcks, you will need two artifacts for each service definition as explained in Multi-artifacts support:

• A gRPC / Protocol Buffers file definition that holds the Service metadata and operations definitions,
• A Postman Collection file that holds the mock examples (requests and responses) for the different operations of the gRPC Service.

Conventions

In order to be correctly imported and understood by Microcks, your gRPC and Postman files should follow a little set of reasonable conventions and best practices.

• As of today Microcks only supports proto3 syntax as it is now the default and encouraged version from gRPC community,

• gRPC doesn’t have the notion of Service version. In Microcks, this notion is critical and we will use the package information from the proto file to compute a version.

  • For package names containing more than 2 path levels, we’ll extract the last one as being the version. So package io.github.microcks.grpc.hello.v1; will produce version v1
  • We’ll keep unchanged shorter package named, so package com.acme; will produce version com.acme that is not very unique 😞.
  • So be sure to follow gRPC versioning best practices!

• Your Postman collection description will need to have a name that matches the gRPC service name and a custom property version that matches the above computed version,

• Your Postman collection will need to organize examples into requests having the same name and url as the gRPC methods,

• Your Postman collection will hold examples defined in JSON as JSON is a textual format easier to use than binary Protobuf 😅

We recommend having a look at our sample gRPC for HelloService as well as the companion Postman collection to fully understand and see those conventions in action.

Dispatchers

gRPC service mocks in Microcks supports 4 different types of dispatcher:

• empty dispatcher means that Microcks will pick the first available response of operation,
• QUERY_ARGS dispatcher can be inferred automatically at import time. It is used for dispatching based on the content of the gRPC Request if this one is made of Protobuff scalar types (string, integer, boolean, float, …) excepted bytes,
• JSON_BODY dispatcher can be used for dispatching based on the content of the complete gRPC Request body translated in JSON,
• SCRIPT dispatcher can be used for dispatching based on the content of the complete gRPC Request body translated in JSON.

Illustration

Let’s dive in details of our sample io.github.microcks.grpc.hello.v1.HelloService gRPC service.

Specifying Service structure

This is a fairly trivial gRPC Service that just greet new comers. You can see below the definition found in hello-v1.proto.

syntax = "proto3";

package io.github.microcks.grpc.hello.v1;

option java_multiple_files = true;

message HelloRequest {
    string firstname = 1;
    string lastname = 2;
}

message HelloResponse {
    string greeting = 1;
}

service HelloService {
    rpc greeting(HelloRequest) returns (HelloResponse);
}

Considering the package of this proto file, when imported into Microcks, it will discover the io.github.microcks.grpc.hello.v1.HelloService service with version v1 and the unique operation greeting.

Specifying Service examples

Specification of examples is done using a Postman Collection as examples cannot be attached to main proto file and thanks multi-artifacts support feature.

Using Postman, just create a new Collection - using the same name as gRPC Service and adding the custom property version at the beginning of description like illustrated below:

You can now start organizing and creating requests that are matching with the gRPC service method name. For our example, we’re specifying the greeting request for the greeting gRPC method.

The next step is now to create a bunch of examples for each of the requests/operations of your Collection as explained by the Postman documentation. You’ll give each example a meaningful name regarding the use-case it is supposed to represent. Example url should also match with the name of the gRPC method; here we have a simple http:///greeting.

Defining dispatch rules

If the default inferred dispatchers don’t match with your use-case, you’ll need an additional step for assembling data coming from gRPC Protofile and Postman Collection is to define how to dispatch requests. For gRPC, your can typically use a JSON_BODY or a SCRIPT dispatcher as mentionned above.

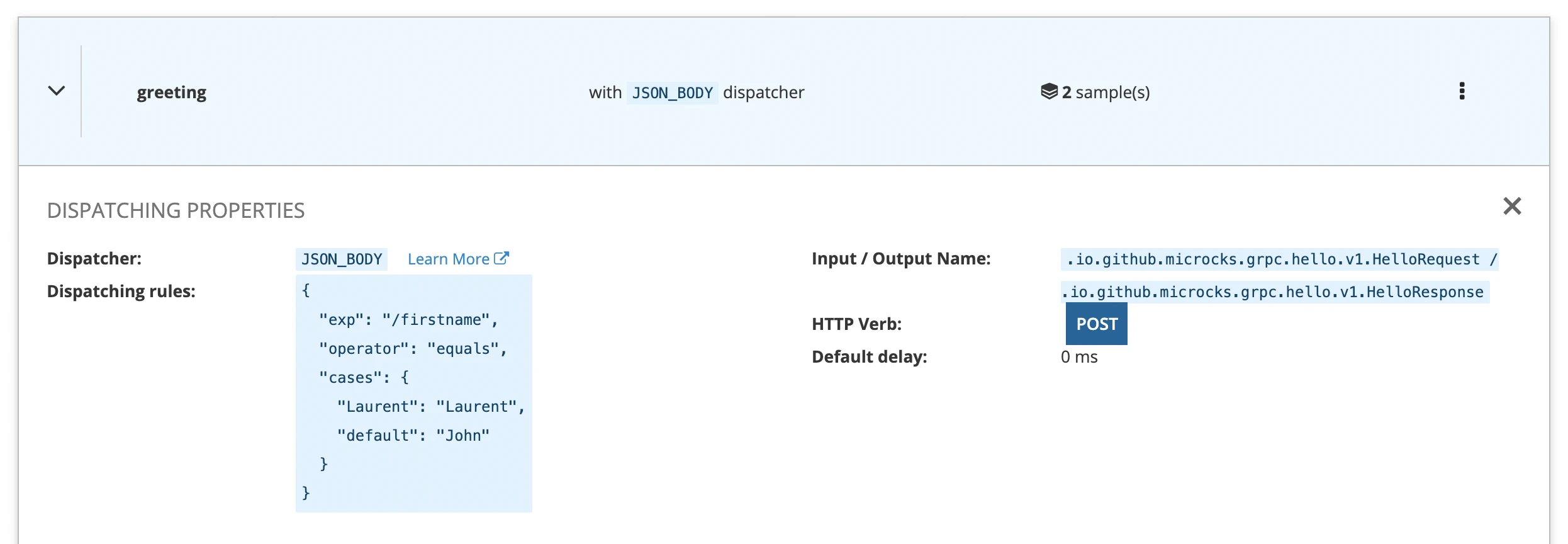

You can use a Metadata artifact for that or directly edit the dispatcher in the Web UI. Here-after we have defined a simple rule that is routing incoming requests depending on the value of the firstname property of the incoming message.
