MQTT Mocking & Testing

🗓️ Last updated on May 13, 2024 | 7 | Improve this page

Overview

This guide shows you how to use the Message Queuing Telemetry Transport (MQTT) protocol with Microcks. MQTT is a standard messaging protocol for the Internet of Things (IoT). It is used today in a wide variety of industries, such as automotive, manufacturing, telecommunications, oil and gas, etc.

Microcks supports MQTT as a protocol binding for AsyncAPI. That means that Microcks can connect to an MQTT broker for publishing mock messages as soon as it receives a valid AsyncAPI Specification and to any MQTT broker in your organization to check that flowing messages are compliant with the schema described within your specification.

Let’s start! 🚀

1. Set up the MQTT broker connection

The first mandatory step here is to set up Microcks so that it will be able to connect to an MQTT broker for sending mock messages. Microcks has been tested successfully with ActiveMQ Artemis as well as Eclipse Mosquitto with MQTT protocol version 3.1.1. Both can be deployed as containerized workloads on your Kubernetes cluster. Microcks does not provide any installation scripts or procedures; please refer to the projects or related products documentation.

If you have used the Operator based installation of Microcks, you’ll need to add some extra properties to your MicrocksInstall custom resource. The fragment below shows the important ones:

apiVersion: microcks.github.io/v1alpha1
kind: MicrocksInstall
metadata:
  name: microcks
spec:
  [...]
  features:
    async:
      enabled: true
      [...]
      mqtt:
        url: mqtt-broker.app.example.com:1883
        username: microcks
        password: microcks

The async feature should, of course, be enable,d and then the important things to notice are located in to the mqtt block:

  • url is the hostname + port where the broker can be reached by Microcks,
  • username is simply the user to use for authenticating the connection,
  • password represents this user’s credentials.

For now, Microcks does not support connecting to a broker secured using TLS. This is tracked in an RFE here and will be implemented in the near future.

If you have used the Helm Chart based installation of Microcks, this is the corresponding fragment put in a Values.yml file:

[...]
features:
  async:
    enabled: true
    [...]
    mqtt:
      url: mqtt-broker.app.example.com:1883
      username: microcks
      password: microcks

The actual connection to the MQTT broker will only be made once Microcks sends mock messages to it. Let’s see below how to use the MQTT binding with AsyncAPI.

2. Use MQTT in AsyncAPI

As MQTT is not the default binding in Microcks, you should explicitly add it as a valid binding within your AsyncAPI contract. Below is a fragment of the AsyncAPI specification file that shows the important things to notice when planning to use Avro and Microcks with AsyncAPI. It comes with one sample you can find on our GitHub repository.

asyncapi: '2.0.0'
id: 'urn:io.microcks.example.streetlights'
[...]
channels:
  smartylighting/streetlights/event/lighting/measured:
    [...]
    subscribe:
      [...]
      bindings:
        mqtt:
          qos: 0
          retain: false

You’ll notice that we just have to add an mqtt non empty block within the operation bindings. Just define one property (like qos for example) and Microcks will detect that this binding has been specified.

As usual, as Microcks internal mechanics are based on examples, you will also have to attach examples to your AsyncAPI specification.

In our example, we have used references to a shared message structure that also holds examples. We have defined 3 virtual devices that are sending their lumens measure and the corresponding date, still coming from our GitHub repository.

asyncapi: '2.0.0'
id: 'urn:io.microcks.example.streetlights'
[...]
defaultContentType: application/json
channels:
  smartylighting/streetlights/event/lighting/measured:
    [...]
    subscribe:
      [...]
      bindings:
        mqtt:
          qos: 0
          retain: false
      message:
        $ref: '#/components/messages/lightMeasured'
components:
  messages:
    lightMeasured:
      [...]
      traits:
        - $ref: '#/components/messageTraits/commonHeaders'
      payload:
        $ref: '#/components/schemas/lightMeasuredPayload'
      examples:
        - dev0:
            summary: Example for Device 0
            headers: |-
              {"my-app-header": 14}
            payload: |-
              {"streetlightId":"dev0", "lumens":1000, "sentAt":"{{now(yyyy-MM-dd'T'HH:mm:SS'Z')}}"}
        - dev1:
            summary: Example for Device 1
            headers:
              my-app-header: 14
            payload:
              streetlightId: dev1
              lumens: 1100
              sentAt: "{{now(yyyy-MM-dd'T'HH:mm:SS'Z')}}"
        - dev2:
            summary: Example for Device 2
            headers:
              my-app-header: 14
            payload:
              streetlightId: dev2
              lumens: 1200
              sentAt: "{{now(yyyy-MM-dd'T'HH:mm:SS'Z')}}"

If you’re now yet accustomed to it, you may wonder what this {{now(yyyy-MM-dd'T'HH:mm:SS'Z')}} notation is? These are just Templating functions that allow the generation of dynamic content! 😉

Now simply import your AsyncAPI file into Microcks either using a Direct upload import or by defining an Importer Job. Both methods are described in this page.

3. Validate your mocks

Now it’s time to validate that the mock publication of messages on the connected broker is correct. In a real-world scenario, this means developing a consuming script or application that connects to the topic where Microcks is publishing messages.

For our Streetlights API, we have such a consumer in one GitHub repository.

Follow the following steps to retrieve it, install dependencies and check the Microcks mocks:

git clone https://github.com/microcks/api-tooling.git
cd api-tooling/async-clients/mqttjs-client
npm install

node consumer.js mqtt://mqtt-broker.app.example.com:1883 StreetlightsAPI_1.0.0_smartylighting-streetlights-event-lighting-measured microcks microcks
Connecting to mqtt://mqtt-broker.app.example.com:1883 on topic StreetlightsAPI_1.0.0_smartylighting-streetlights-event-lighting-measured
{
  "streetlightId": "dev0",
  "lumens": 1000,
  "sentAt": "2021-02-14T10:01:783Z"
}
{
  "streetlightId": "dev1",
  "lumens": 1100,
  "sentAt": "2021-02-14T10:01:784Z"
}
{
  "streetlightId": "dev2",
  "lumens": 1200,
  "sentAt": "2021-02-14T10:01:785Z"
}

🎉 Fantastic! We are receiving the three different messages corresponding to the three defined devices, each and every 3 seconds, that is the default publication frequency. You’ll notice that each sentAt property has a different value thanks to the templating notation.

Note: this simple consumer.js script is also able to handle TLS connections to your MQTT broker. It was omitted here for sake of simplicity but you can also use commands like: node consumer.js mqtts://artemis-my-acceptor-0-svc-rte-microcks.apps.example.com:443 StreetlightsAPI_1.0.0_smartylighting-streetlights-event-lighting-measured admin mypassword broker.crt

4. Run AsyncAPI tests

Now the final step is to perform some tests of the validation features in Microcks. As we will need API implementation for that, it’s not as easy as writing an HTTP-based API implementation; we have some helpful scripts in our api-tooling GitHub repository. These scripts are made for working with the Streetlights API sample we used so far, but feel free to adapt them for your own use.

Imagine that you want to validate messages from a QA environment with a dedicated MQTT broker. Still being in the mqttjs-client folder, now use the producer.js utility script to publish messages on a streetlights-event-lighting-measured topic:

node producer.js mqtts://mqtt-broker-qa.app.example.com:443 streetlights-event-lighting-measured qa-user qa-password broker-qa.crt
Connecting to mqtts://mqtt-broker-qa.app.example.com:443 on topic streetlights-event-lighting-measured
{
  streetlightId: 'devX',
  lumens: 900,
  sentAt: '2021-02-15T09:06:42.744Z'
}
{
  streetlightId: 'devX',
  lumens: 900,
  sentAt: '2021-02-15T09:06:45.750Z'
}
[...]

Do not interrupt the execution of the script for now.

If the QA broker access is secured—let’s say with credentials and custom certificates—we will first have to manage a Secret in Microcks to hold this information. Within the Microcks console, first go to the Administration section and the Secrets tab.

Administration and Secrets will only be available to people having the administrator role assigned. Please check this documentation for details.

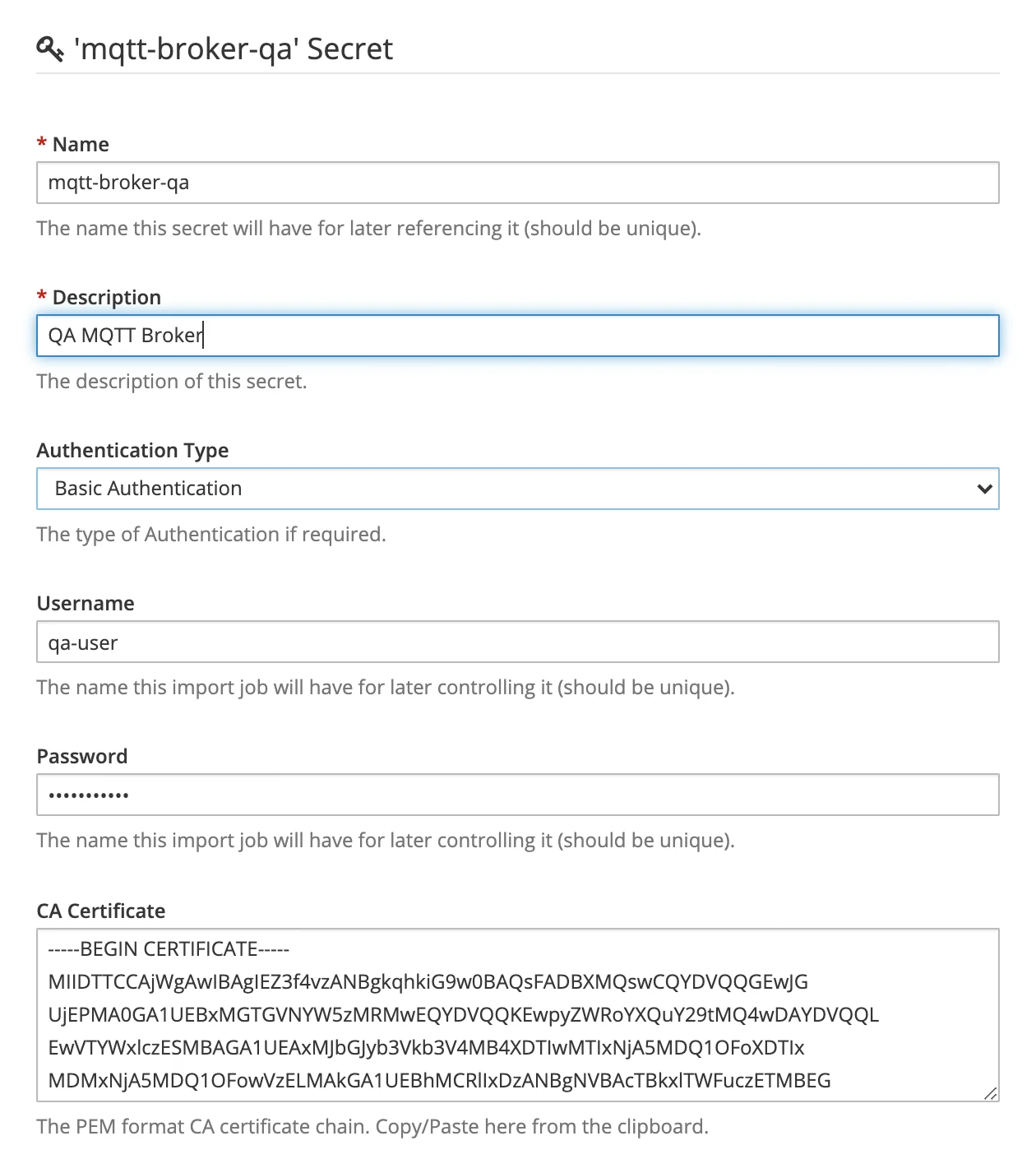

The screenshot below illustrates the creation of such a secret for your QA MQTT Broker with username, credentials and custom certificates using the PEM format.


Once saved, we can go create a New Test within the Microcks web console. Use the following elements in the Test form:

  • Test Endpoint: mqtt://mqtt-broker-qa.app.example.com:443/streetlights-event-lighting-measured that is referencing the MQTT broker endpoint,
  • Runner: ASYNC API SCHEMA for validating against the AsyncAPI specification of the API,
  • Timeout: Keep the default of 10 seconds,
  • Secret: This is where you’ll select the QA MQTT Broker you previously created.

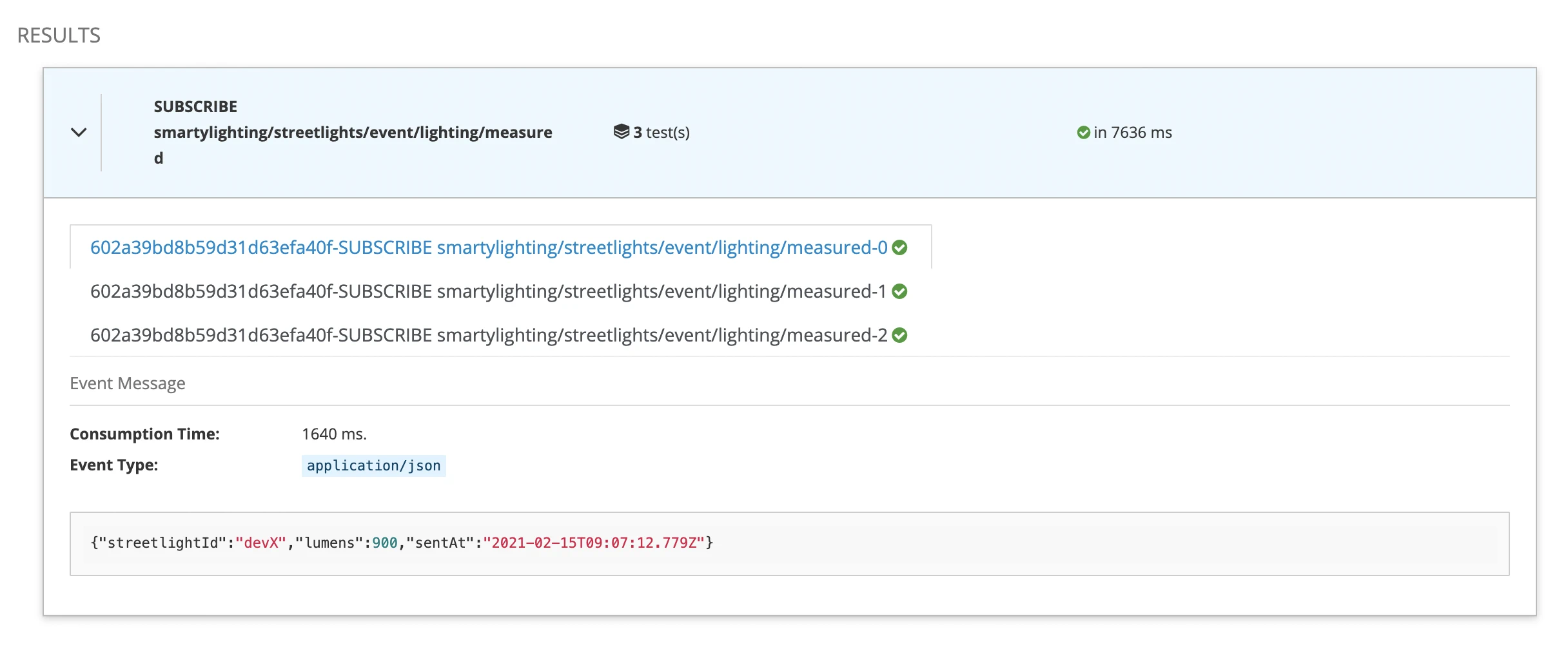

Launch the test and wait for a few seconds, and you should get access to the test results as illustrated below:


This is fine, and we can see that Microcks captured messages and validated them against the payload schema embedded into the AsyncAPI specification. In our sample, every property is required and the message does not allow additionalProperties to be defined.

So now let’s see what happened if we tweak that a bit… Open the producer.js script in your favorite editor to put comments on line 35 and to remove comments from line 36. It’s removing the lumens measure and adding an unexpected location property, as shown below, after having restarted the producer:

node producer.js mqtts://mqtt-broker-qa.app.example.com:443 streetlights-event-lighting-measured qa-user qa-password broker-qa.crt
Connecting to mqtts://mqtt-broker-qa.app.example.com:443 on topic streetlights-event-lighting-measured
{
  streetlightId: 'devX',
  location: '47.8509682604982, 0.11136576784773598',
  sentAt: '2021-02-15T10:04:49.669Z'
}
{
  streetlightId: 'devX',
  location: '47.8509682604982, 0.11136576784773598',
  sentAt: '2021-02-15T10:04:52.676Z'
}
[...]

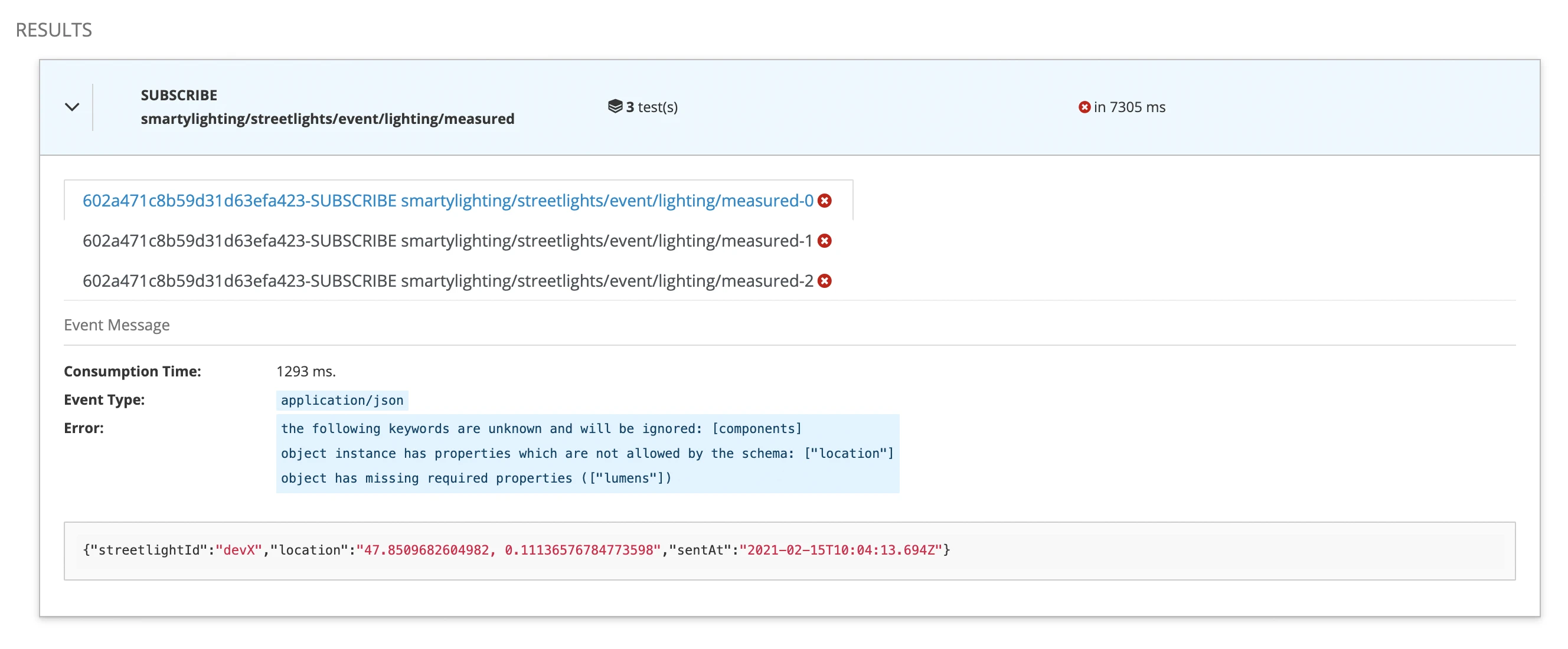

Relaunch a new test, and you should get results similar to those below:


🥳 We can see that there’s now a failure, and that’s perfect! What does that mean? It means that when your application or devices are sending garbage, Microcks will be able to spot this and inform you that the expected message format is not respected.

Wrap-Up

In this guide, we have seen how Microcks can also be used to send mock messages on an MQTT Broker connected to the Microcks instance. This helps speed up the development of the application that consumes these messages. We finally demonstrated how Microcks can be used to detect any drifting issues between the expected message format and the one effectively used by real-life producers.

Thanks for reading, and let you know what you think on our Discord chat 🐙
