Overview

This guide shows you how to use Microcks for mocking and testing Avro encoding on top of Apache Kafka. You’ll see how Microcks can speed up the sharing of Avro schema to consumers using a Schema Registry, and we will check how Microcks can detect drifts between the expected Avro format and the one really used.

Microcks supports Avro as an encoding format for mocking and testing asynchronous and event-driven APIs through AsyncAPI. When it comes to serializing Avro data to a Kafka topic, you usually have 2 options :

  • The “old-fashioned one” that is about putting raw Avro binary representation of the message payload,
  • The “modern one” that is about putting the Schema ID + the Avro binary representation of the message payload (see Schema Registry: A quick introduction).

This guide presents the 2 options that we will call RAW or REGISTRY. Microcks is by default configured to manage the RAW options, so it does not require any external dependency to get you started. If you want to stick with this option, the first step below is obviously optional.

1. Set up Schema Registry

Microcks has been successfully tested with both Confluent Schema Registry and Apicurio Registry. Both can be deployed as containerized workloads on your Kubernetes cluster. Microcks does not provide any installation scripts or procedures; please refer to the documentation for projects or related products.

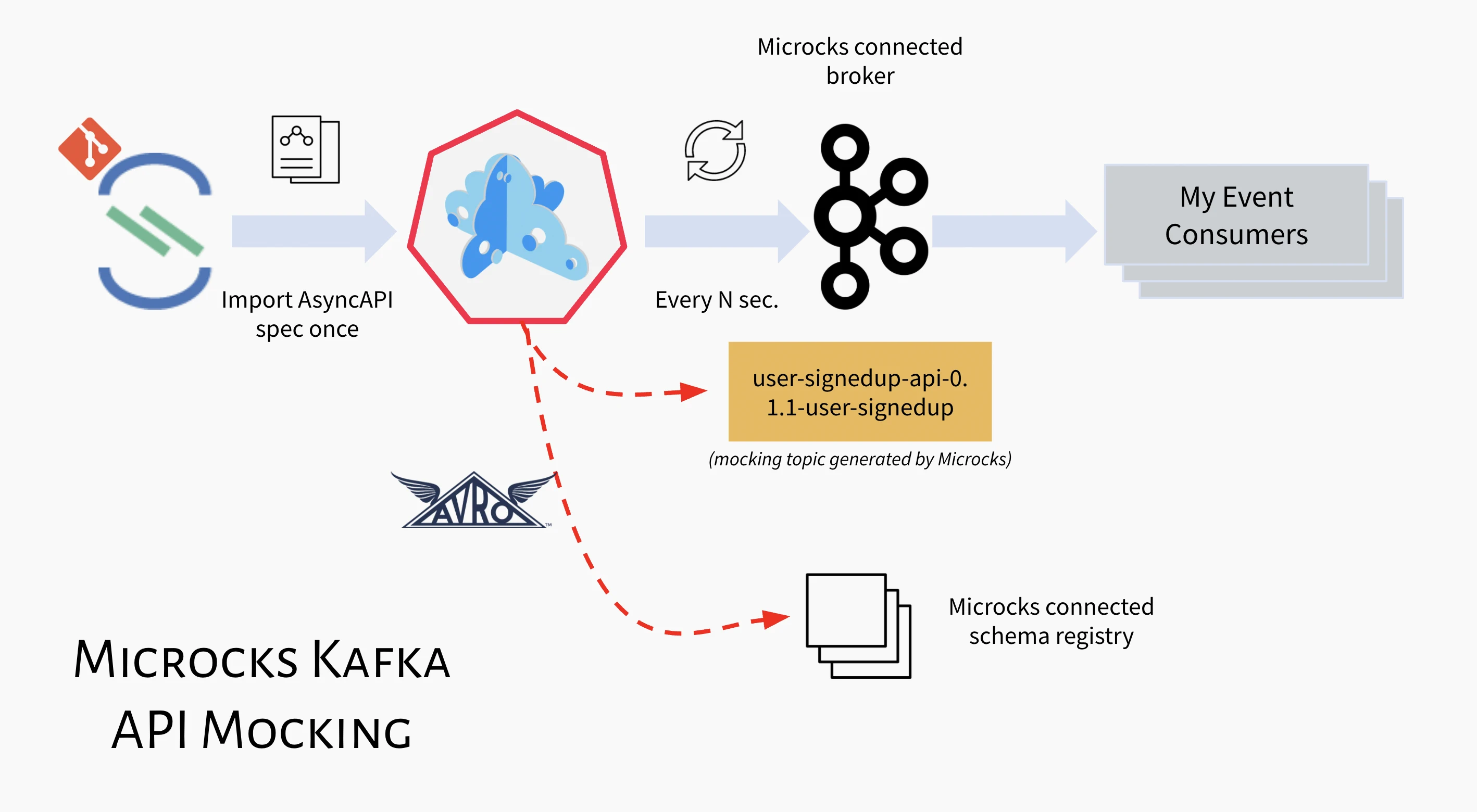

When connected to a Schema Registry, Microcks is pushing the Avro Schema to the registry at the same time it is pushing Avro encoded mock messages to the Kafka topic. That way, Event consumers may retrieve the Avro Schema from the registry to be able to deserialize messages.


If you have used the Operator based installation of Microcks, you’ll need to add some extra properties to your MicrocksInstall custom resource. The fragment below shows the important ones:

apiVersion: microcks.github.io/v1alpha1
kind: MicrocksInstall
metadata:
  name: microcks
spec:
  [...]
  features:
    async:
      enabled: true
      [...]
      defaultAvroEncoding: REGISTRY
      kafka:
        [...]
        schemaRegistry:
          url: https://schema-registry.apps.example.com
          confluent: true
          username: microcks
          credentialsSource: USER_INFO

The important things to notice are:

  • defaultAvroEncoding should be set to REGISTRY (this is indeed a workaround until AsyncAPI adds support for specifying the serialization details at the Binding level. See this issue for more.)
  • schemaRegistry block should now be specified with the correct url. The confluent mode allows you to tell Microcks that the registry is the Confluent one, OR to turn on the Confluent compatibility mode if you’re using an Apicurio Registry. username and credentialsSource are only used if using a secured Confluent registry.

If you have used the Helm Chart based installation of Microcks, this is the corresponding fragment put in a Values.yml file:

[...]
features:
  async:
    enabled: true
    [...]
    defaultAvroEncoding: REGISTRY
    kafka:
      [...]
      schemaRegistry:
        url: https://schema-registry.apps.example.com
        confluent: true
        username: microcks
        credentialsSource: USER_INFO

The actual connection to the Schema Registry will only be made once Microcks sends Avro messages to Kafka. Let’s see below how to use Avro encoding with AsyncAPI.

2. Use Avro in AsyncAPI

AsyncAPI allows referencing the Avro schema used for serializing/deserializing messages on a Kafka topic. The flexible notation of AsyncAPI allows to do that in 3 different ways:

  • Using the embedded notation: that means that the Avro schema is defined inline within the message payload property,
  • Using remote reference: that means that the schema is specified using an absolute remote endpoint like $ref: 'https://schemas.example.com/user' within the message payload property,
  • Using local reference: that means that schema is specified using relative reference like $ref: './user-signedup.avsc#/User' within the message payload property.

Below is a fragment of the AsyncAPI specification file that shows the important things to notice when planning to use Avro and Microcks with AsyncAPI. It comes with one sample you can find on our GitHub repository.

asyncapi: '2.0.0'
id: 'urn:io.microcks.example.user-signedup'
[...]
channels:
  user/signedup:
    [...]
    subscribe:
      [...]
      contentType: avro/binary
      schemaFormat: application/vnd.apache.avro+json;version=1.9.0
      payload:
          ref: './user-signedup.avsc#/User'

You’ll notice that it is important that the contentType and schemaFormat properties should be defined according to the Avro format. In this GitHub repository, in the same folder, you’ll also find the user-signedup.avsc file defining the User record type like below:

{
  "namespace": "microcks.avro",
  "type": "record",
  "name": "User",
  "fields": [
    {"name": "fullName", "type": "string"},
    {"name": "email",  "type": "string"},
    {"name": "age", "type": "int"}
  ]
}

As we use references, our full specification is now spanning multiple files, so you’ll not be able to simply upload one file for API import into Microcks. You will have to define a full Importer Job as described here. During the import of the AsyncAPI contract file within Microcks, local references will be resolved, and files downloaded and integrated within Microcks’ own repository. The capture below illustrates in the Contracts section that there are now two files: an AsyncAPI and an Avro schema.


Finally, as Microcks’ internal mechanics are based on examples, you will also have to attach examples to your AsyncAPI specification. But: how to specify examples for a binary encoding such as Avro? No problem! Simply use JSON or YAML as illustrated in the fragment below, still coming from our GitHub repository.

asyncapi: '2.0.0'
id: 'urn:io.microcks.example.user-signedup'
[...]
channels:
  user/signedup:
    [...]
    subscribe:
      [...]
      examples:
        - laurent:
            payload: |-
              {"fullName": "Laurent Broudoux", "email": "laurent@microcks.io", "age": 41}
        - john:
            payload:
              fullName: John Doe
              email: john@microcks.io
              age: 36

3. Validate your mocks

Now it’s time to validate that the mock publication of Avro messages is correct.

With Schema Registry

When using the REGISTRY encoding options with a deployed Schema Registry, things are pretty simple, as you can interact with the registry either from the GUI or the CLI. Let’s check that Microcks has correctly published the schema for our sample topic. See below the results we have with our sample:

curl https://schema-registry.apps.example.com -s -k | jq .
[
  "UsersignedupAvroAPI_0.1.2_user-signedup-microcks.avro.User"
]
curl https://schema-registry.apps.example.com/subjects/UsersignedupAvroAPI_0.1.2_user-signedup-microcks.avro.User/versions -s -k | jq .
[
  1
]
curl https://schema-registry.apps.example.com/subjects/UsersignedupAvroAPI_0.1.2_user-signedup-microcks.avro.User/versions/1 -s -k | jq .
{
  "subject": "UsersignedupAvroAPI_0.1.2_user-signedup-microcks.avro.User",
  "version": 1,
  "id": 1,
  "schema": "{\"type\":\"record\",\"name\":\"User\",\"namespace\":\"microcks.avro\",\"fields\":[{\"name\":\"fullName\",\"type\":\"string\"},{\"name\":\"email\",\"type\":\"string\"},{\"name\":\"age\",\"type\":\"int\"}]}"
}

Very nice! We can also use the kafkacat CLI tool to ensure that a topic consumer can deserialize messages using the schema stored in the registry.

kafkacat -b microcks-kafka-bootstrap-microcks.apps.example.com:9092 -t UsersignedupAvroAPI_0.1.2_user-signedup -s value=avro -r https://schema-registry.apps.example.com -o end
% Auto-selecting Consumer mode (use -P or -C to override)
% Reached end of topic UsersignedupAvroAPI_0.1.2_user-signedup [0] at offset 114
{"fullName": "Laurent Broudoux", "email": "laurent@microcks.io", "age": 41}
{"fullName": "John Doe", "email": "john@microcks.io", "age": 36}
% Reached end of topic UsersignedupAvroAPI_0.1.2_user-signedup [0] at offset 116

🎉 Super!

Without Schema Registry

Without the Schema Registry, things may be more complicated, as you have to develop a consuming script or application that should have the Avro Schema locally available to deserialize the message content.

For our User signed up Avro API sample, we have such a consumer in one GitHub repository.

Follow the following steps to retrieve it, install dependencies and check the Microcks mocks:

git clone https://github.com/microcks/api-tooling.git
cd api-tooling/async-clients/kafkajs-client
npm install

node avro-consumer.js microcks-kafka-bootstrap-microcks.apps.example.com:9092 UsersignedupAvroAPI_0.1.2_user-signedup
Connecting to microcks-kafka-bootstrap-microcks.apps.example.com:9092 on topic UsersignedupAvroAPI_0.1.2_user-signedup
{"level":"INFO","timestamp":"2021-02-11T20:30:48.672Z","logger":"kafkajs","message":"[Consumer] Starting","groupId":"kafkajs-client"}
{"level":"INFO","timestamp":"2021-02-11T20:30:48.708Z","logger":"kafkajs","message":"[Runner] Consumer has joined the group","groupId":"kafkajs-client","memberId":"my-app-7feb2099-1701-4a8a-9eff-50aeed60d65d","leaderId":"my-app-7feb2099-1701-4a8a-9eff-50aeed60d65d","isLeader":true,"memberAssignment":{"UsersignedupAvroAPI_0.1.2_user-signedup":[0]},"groupProtocol":"RoundRobinAssigner","duration":36}
{
  "fullName": "Laurent Broudoux",
  "email": "laurent@microcks.io",
  "age": 41
}
{
  "fullName": "John Doe",
  "email": "john@microcks.io",
  "age": 36
}

Note: This simple avro-consumer.js script can also handle TLS connections to your Kafka broker. It was omitted here for simplicity, but you can put the name of the CRT file as the third argument of the command.

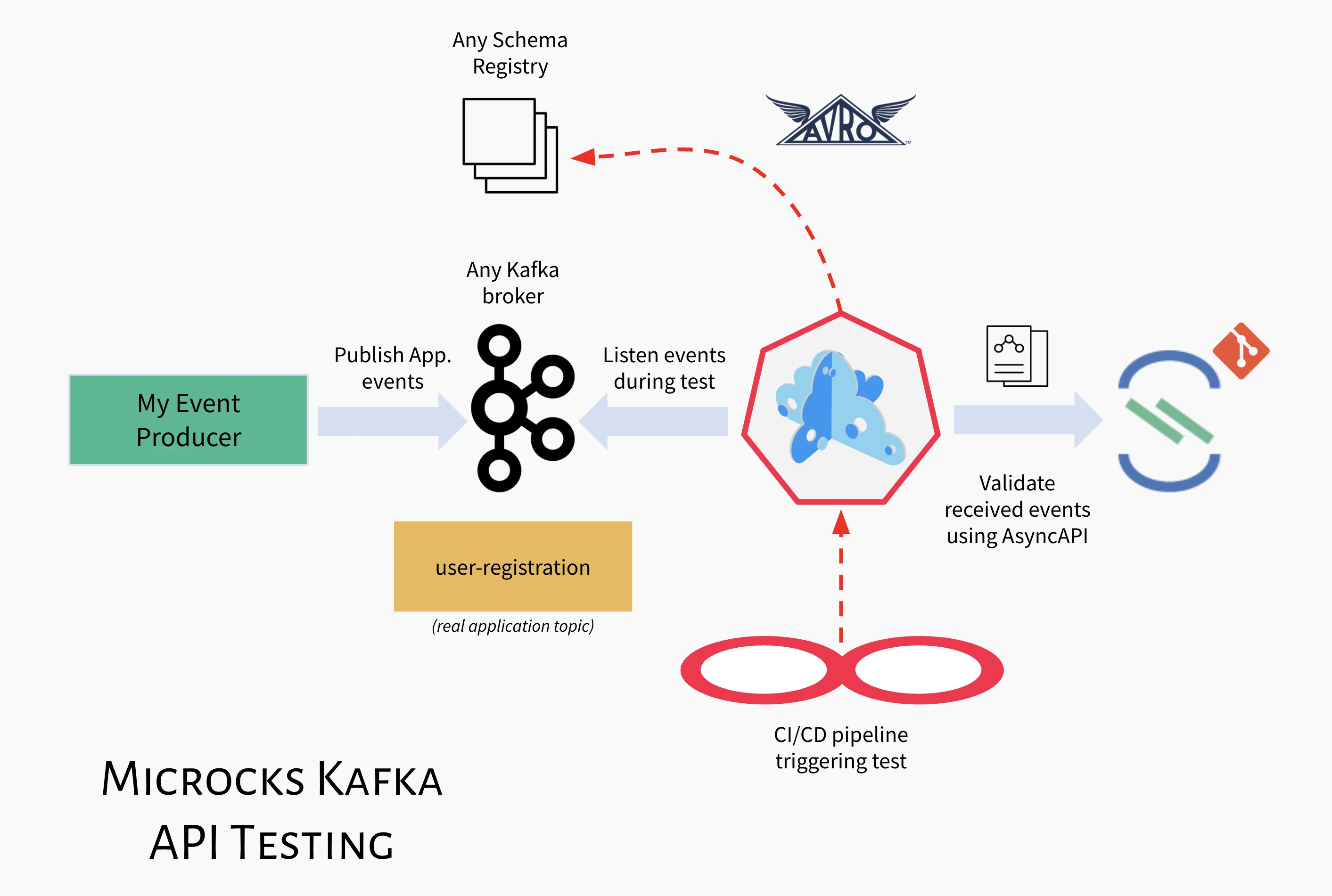

4. Run AsyncAPI tests

Now, the last step for being fully accustomed to Avro on Kafka support in Microcks is to perform some tests. As we will need API implementation for that, it’s not as easy as writing an HTTP-based API implementation; we have some helpful scripts in our api-tooling GitHub repository. These scripts are made for working with the User signed up Avro API sample we used so far, but feel free to adapt them for your own use.

So the first thing for this section will be to retrieve the scripts and install dependencies if you have not already done that in the previous section. Follow the instructions below:

git clone https://github.com/microcks/api-tooling.git
cd api-tooling/async-clients/kafkajs-client
npm install

With Schema Registry

When using a Schema Registry with the REGISTRY encoding configured into Microcks, the following schema illustrates Microcks’ interactions with the broker and registry. Here, we are not necessarily using the broker and registry Microcks is using for mocking, but we are able to reuse any Kafka broker and any Schema Registry available within your organization - typically this will depend on the environment you want to launch tests upon.


That said, imagine that you want to validate messages from a QA environment with a dedicated broker and registry. Start by using our utility script to produce some messages on an user-registration arbitrary topic. This script is using a local Avro schema to do the binary encoding, and it is also publishing this schema into the connected QA Schema Registry:

node avro-with-registry-producer.js kafka-broker-qa.apps.example.com:9092 user-registration https://schema-registry-qa.apps.example.com
Connecting to kafka-broker-qa.apps.example.com:9092 on topic user-registration, using registry https://schema-registry-qa.apps.example.com
{"level":"ERROR","timestamp":"2021-02-11T21:07:09.962Z","logger":"kafkajs","message":"[Connection] Response Metadata(key: 3, version: 5)","broker":"kafka-broker-qa.apps.example.com:9092","clientId":"my-app","error":"There is no leader for this topic-partition as we are in the middle of a leadership election","correlationId":1,"size":108}
[
  {
    topicName: 'user-registration',
    partition: 0,
    errorCode: 0,
    baseOffset: '0',
    logAppendTime: '-1',
    logStartOffset: '0'
  }
]
[...]

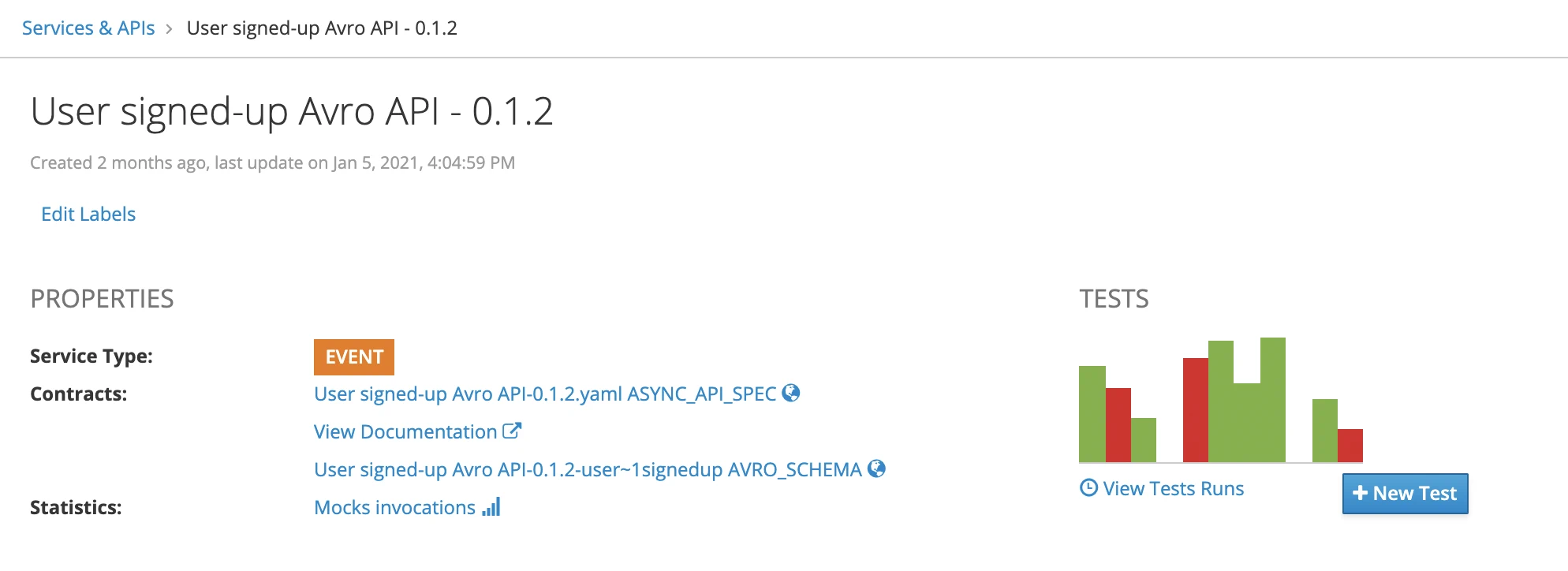

Do not interrupt the execution of the script and go create a New Test within the Microcks web console. Use the following elements in the Test form:

  • Test Endpoint: kafka://kafka-broker-qa.apps.example.com:9092/user-registration?registryUrl=https://schema-registry-qa.apps.example.com and note this new registryUrl parameter to tell Microcks where to get the Avro schema used for writing 😉,
  • Runner: ASYNC API SCHEMA for validating against the AsyncAPI specification of the API.

Whilst the Test Endpoint and Schema Registry may be secured with custom TLS certificates or username/password, we skipped this from this guide for simplicity, but Microcks is handling this through Secrets or additional registryUsername and registryCredentialsSource parameters.

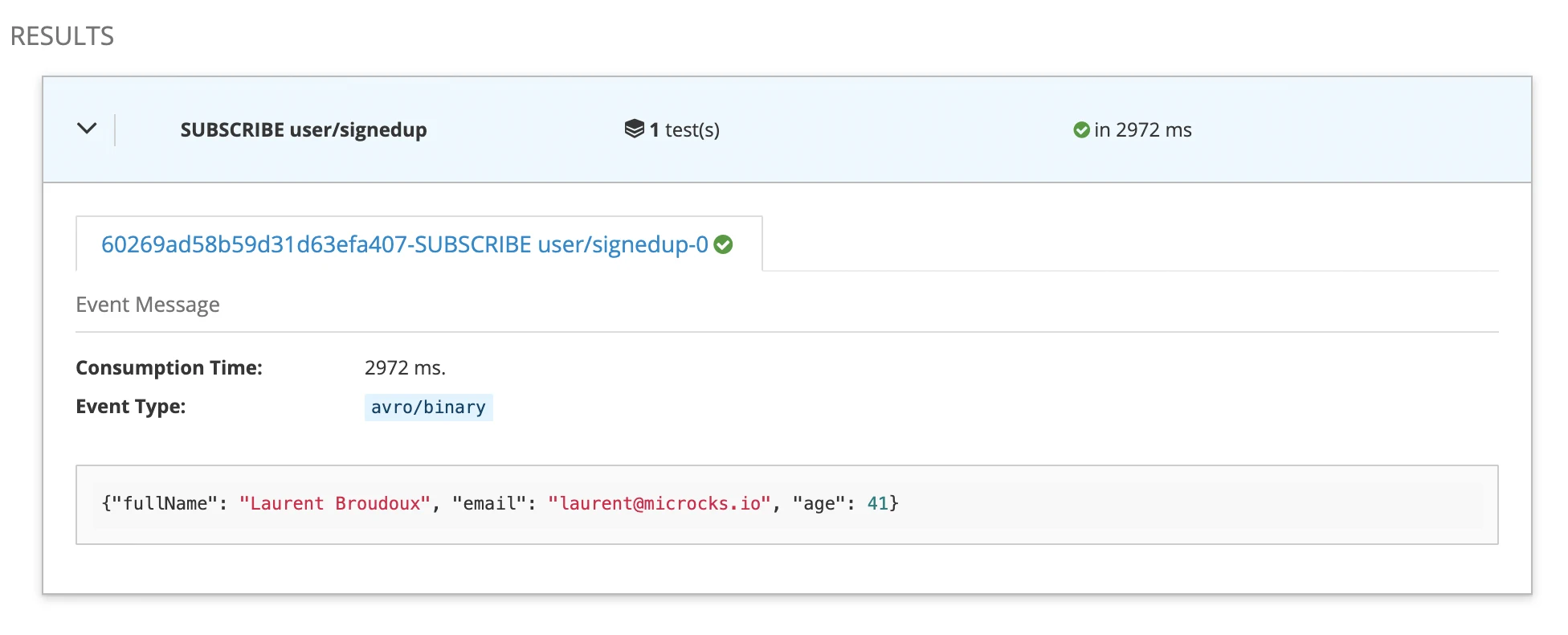

Launch the test and wait for a few seconds, and you should get access to the test results as illustrated below:


This is fine, and we can see that the type is avro/binary and the message content is nicely displayed using JSON, but what in case of a failure? What are we able to demonstrate using Microcks validation? Next to the script lies actually two Avro schemas:

  • user-signedup.avsc is correct and matches the one that is referenced in the AsyncAPI specification,
  • user-signedup-bad.avsc represented an evolution and does not match the one from the AsyncAPI specification.

Well, let’s see if we can tweak the avro-with-registry-producer.js script a bit. Open it in your favorite editor, add comments on lines 48 and 56, and remove comments on lines 45 and 55. Relaunch it and relaunch a new test.


🎉 We can see that there’s now a failure, and that’s perfect! What does that mean? It means that when your application is using a different and incompatible schema from the one in the AsyncAPI contract, Microcks raises an error and spots the breaking change! The fullName required property was expected as stated in the AsyncAPI file, but cannot be found inthe incoming message… thus your tested application producing message is sending garbage indeed 😉

Without Schema Registry

Now, looking at the RAW encoding option and what we can deduce from tests. To simulate an existing application, we will now use the avro-producer.js script that is also using the local user-signedup.avsc Avro schema to do the binary encoding:

node avro-producer.js kafka-broker-qa.apps.example.com:9092 user-registration
Connecting to kafka-broker-qa.apps.example.com:9092 on topic user-registration
{"level":"ERROR","timestamp":"2021-02-11T21:37:28.266Z","logger":"kafkajs","message":"[Connection] Response Metadata(key: 3, version: 5)","broker":"kafka-broker-qa.apps.example.com:9092","clientId":"my-app","error":"There is no leader for this topic-partition as we are in the middle of a leadership election","correlationId":1,"size":96}
[
  {
    topicName: 'user-registration',
    partition: 0,
    errorCode: 0,
    baseOffset: '0',
    logAppendTime: '-1',
    logStartOffset: '0'
  }
]
[...]

Do not interrupt the execution of the script and go create a New Test within the Microcks web console. Use the following elements in the Test form:

  • Test Endpoint: kafka://kafka-broker-qa.apps.example.com:9092/user-registration simply,
  • Runner: ASYNC API SCHEMA for validating against the AsyncAPI specification of the API.

Launch the test and wait for a few seconds, and you should get access to the test results as illustrated below:


You can see here that we just have the string representation of the binary message that was sent. Using RAW encoding, we cannot be sure that what we read makes sense regarding the semantic meaning of the API contract.

If you want to play with this idea, start changing the Avro schema used by the producer and adding more properties of different types. As the schema referenced with the AsyncAPI contract is very basic, we’ll always be able to read it.

But start removing properties and just send single bytes, you’ll see that validation failure happens. In RAW mode, validation is very shallow: we cannot detect schema incompatibilities as we do not have the schema used for writing. So Microcks can just check, the binary Avro we can read with the given schema and as long as you send more bytes than expected, it works 😞

Wrap-Up

In this guide, we have seen how Microcks can also be used to simulate Avro messages on top of Kafka. We have also checked how it can connect to a Schema Registry such as the one from Confluent to speed up and make the process of propagating Avro schema updates to API event consumers more reliable. Finally, we ended up demonstrating how Microcks can be used to detect any drifting issues between the expected Avro schema and the one effectively used by real-life producers.

Take care: Microcks will detect if they send garbage! 🗑
