Overview

This guide shows you how to integrate Microcks into your Tekton Pipelines. Microcks provides 2 Tekton Tasks for interacting with a Microcks instance. They allow you to:

• Import Artifacts in a Microcks instance. If import succeeds is pursuing, if not it fails,
• Launch a test on a deployed API endpoint. If test succeeds (ie. API endpoint is conformant with API contract in Microcks) the workflow is pursuing, if not it fails.

Those 2 tasks are basically a wrapper around the Microcks CLI and are using Service Account.

1. Import Tasks in your cluster

Microcks Tekton Tasks are located in the /tekton folder of the Microcks CLI repository.

The microcks-import-task.yaml holds a Tekton Task definition for importing artifacts.

The microcks-test-task.yaml holds a Tekton Task definition for launching test.

Both tasks require that you first create a Kubernetes Secret named microcks-keycloak-client-secret to hold your Service Account information, here’s below a sample of such a Secret using the default provided Service Account information:

kind: Secret
apiVersion: v1
type: Opaque
metadata:
  name: microcks-keycloak-client-secret
stringData:
  clientId: microcks-serviceaccount
  clientSecret: ab54d329-e435-41ae-a900-ec6b3fe15c54

After having created the above secret, you can import both tasks in your cluster namespace:

kubectl create -f https://raw.githubusercontent.com/microcks/microcks-cli/master/tekton/microcks-import-task.yaml -n my-namespace
kubectl create -f https://raw.githubusercontent.com/microcks/microcks-cli/master/tekton/microcks-test-task.yaml -n my-namespace

2. Use Tasks in a Pipeline

Once the tasks are registrated within your cluster namespace, you can integrate them within your Pipeline like this:

apiVersion: tekton.dev/v1beta1
kind: Pipeline
metadata:
  name: user-registration-tekton-pipeline
spec:
  tasks:
    - name: deploy-app
      taskRef:
        [...]
    - name: test-openapi-v1
      taskRef:
        name: microcks-test
      runAfter:
        - deploy-app
      params:
        - name: apiNameAndVersion
          value: "User registration API:1.0.0"
        - name: testEndpoint
          value: http://user-registration.apps.acme.com
        - name: runner
          value: OPEN_API_SCHEMA
        - name: microcksURL
          value: https://microcks.acme.com/api/
        - name: waitFor
          value: 8sec

Here above, your pipleine will first deploy your application and then ask Microcks to execute an OPEN_API_SCHEMA conformance test on the freshly deployed application (supposed to be on the http://user-registration.apps.acme.com endpoint here).

The parameters that can be set here are:

• The apiNameAndVersion to launch tests for: this is simply a service_name:service_version expression,
• The testEndpoint to test: this is a valid endpoint where your service or API implementation has been deployed,
• The runner to use: this is the test strategy you may want to have regarding endpoint,
• The microcksURL to access the Microcks API endpoint,
• The waitFor that is the specification of a test timeout.

3. Run your Pipeline

Pipeline can be executed through a new PipelineRun resource creation or using the tkn CLI tool. This time we’re using the CLI tool to start a new pipeline:

$ tkn pipelinerun start user-registration-tekton-pipeline
PipelineRun started: user-registration-tekton-pipeline-run-64xf7
Showing logs...
[...]

tkn can also be used later to retrieve the logs for the pipeline execution:

$ tkn pipeline logs user-registration-tekton-pipeline-run-64xf7 -f -n user-registration
[...]

[test-openapi-v1 : microcks-test] MicrocksClient got status for test "5f76e969dcba620f6d21008d" - success: false, inProgress: true
[test-openapi-v1 : microcks-test] MicrocksTester waiting for 2 seconds before checking again or exiting.
[test-openapi-v1 : microcks-test] MicrocksClient got status for test "5f76e969dcba620f6d21008d" - success: false, inProgress: true
[test-openapi-v1 : microcks-test] MicrocksTester waiting for 2 seconds before checking again or exiting.
[test-openapi-v1 : microcks-test] MicrocksClient got status for test "5f76e969dcba620f6d21008d" - success: true, inProgress: false
[test-openapi-v1 : microcks-test] Full TestResult details are available here: https://microcks.acme.com/#/tests/5f76e969dcba620f6d21008d

[...]

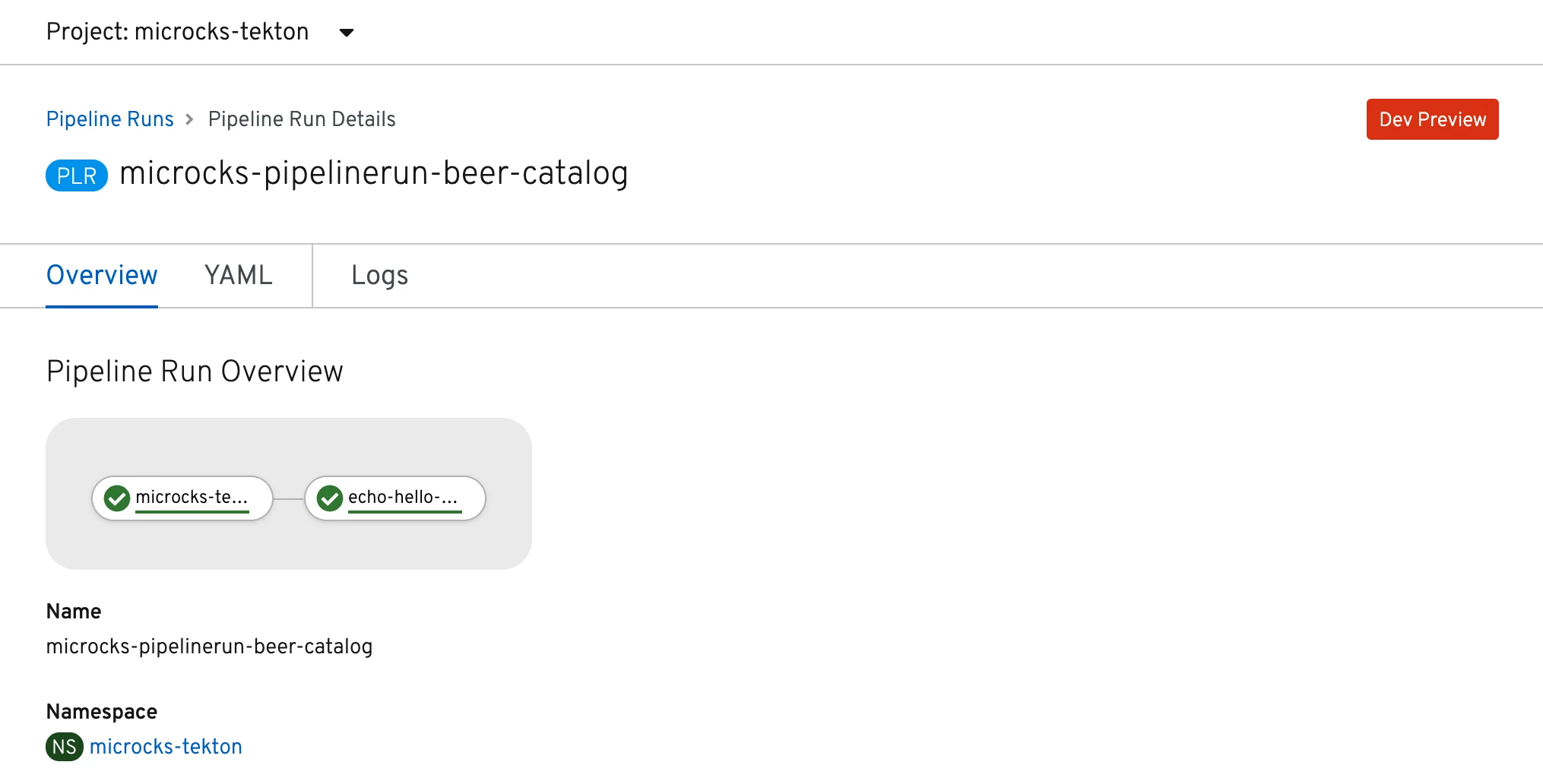

Using the OpenShift Pipelines implementation of Tekton, you may easily get all this information at hands within the Developer Console of your OpenShift cluster. Here’s belo a capture of our pipeline execution:

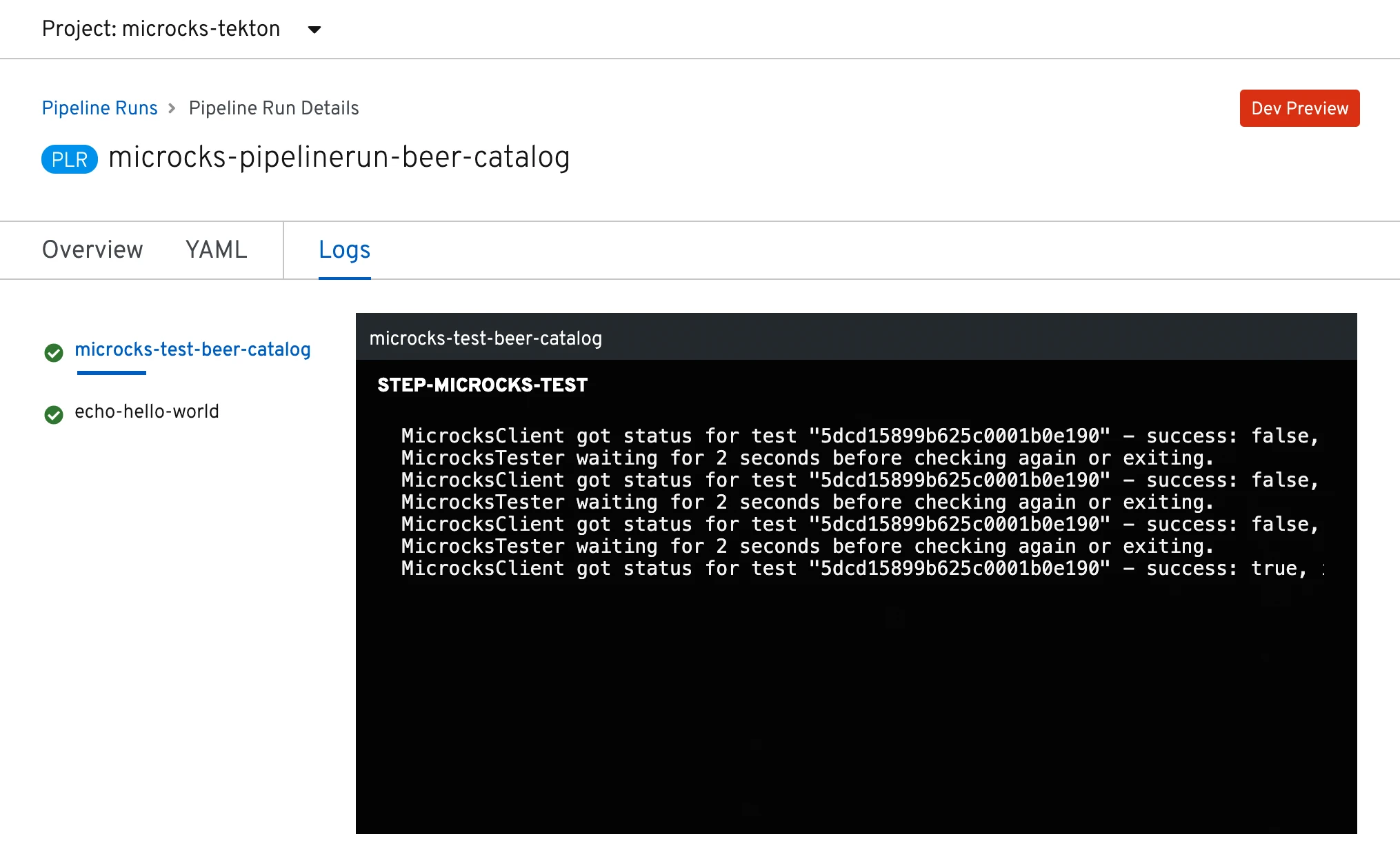

With the view to access the logs of this execution:

Wrap-up

You have learned how to get and use the Microcks Tekton Tasks for your pipeline running on Kubernetes! 🎉

If you want to learn more about that, you can check our full Continuous Testing of ALL your APIs demonstration that has been built with the resource from the API Lifecycle repository.

The most up-to-date information and reference documentation can be found into the repository README.
