Overview

This guide shows you how to integrate Microcks into your Github Actions workflows. Microcks provides 2 GitHub Actions for interacting with a Microcks instance from your workflows:

• The Microcks Import GitHub Action allows you to import Artifacts in a Microcks instance. If import succeeds is pursuing, if not it fails,

• The Microcks Test GitHub Action allows you to launch a Microcks test on a deployed API endpoint. If test succeeds (ie. API endpoint is conformant with API contract in Microcks) the workflow is pursuing, if not it fails.

Those 2 actions are basically a wrapper around the Microcks CLI and are using Service Account. They provide the same configuration capabilities. Especially, they’re sharing the same mandatory configuration parameters that are:

• microcksURL for the Microcks API endpoint,
• keycloakClientId for the Keycloak Realm Service Account ClientId,
• keycloakClientSecret for the Keycloak Realm Service Account ClientSecret.

1. Find them in the Marketplace

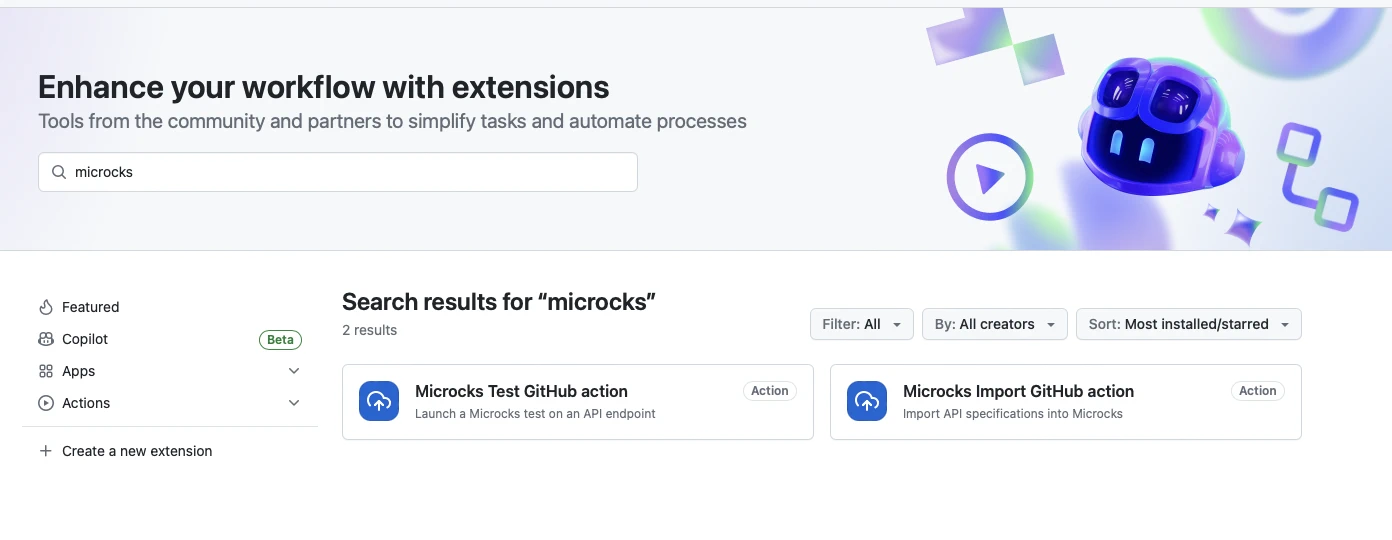

Obviously we can find this action with GitHub Actions Marketplace 😉

You may add one of the Action to your Workflow directly from the GitHub UI.

2. Import GitHub Action

The import action, based on the CLI command, has just one argument that specifies a comma separated list of file paths:

• <specificationFile1[:primary],specificationFile2[:primary]>: The file paths with an optional flag telling if it should be imported as primary or not. See Multi-artifacts explanations documentation. Default is true so it is considered as primary.

Step 1 - Configure the Action

Here’s an example below:

name: my-workflow
on: [push]
jobs:
  my-job:
    runs-on: ubuntu-latest
    environment: Development
    steps:
      - uses: microcks/import-github-action@v1
        with:
          specificationFiles: 'samples/weather-forecast-openapi.yml:true,samples/weather-forecast-postman.json:false'
          microcksURL: 'https://microcks.apps.acme.com/api/'
          keycloakClientId:  ${{ secrets.MICROCKS_SERVICE_ACCOUNT }}
          keycloakClientSecret:  ${{ secrets.MICROCKS_SERVICE_ACCOUNT_CREDENTIALS }}

Step 2 - Configure the Secrets

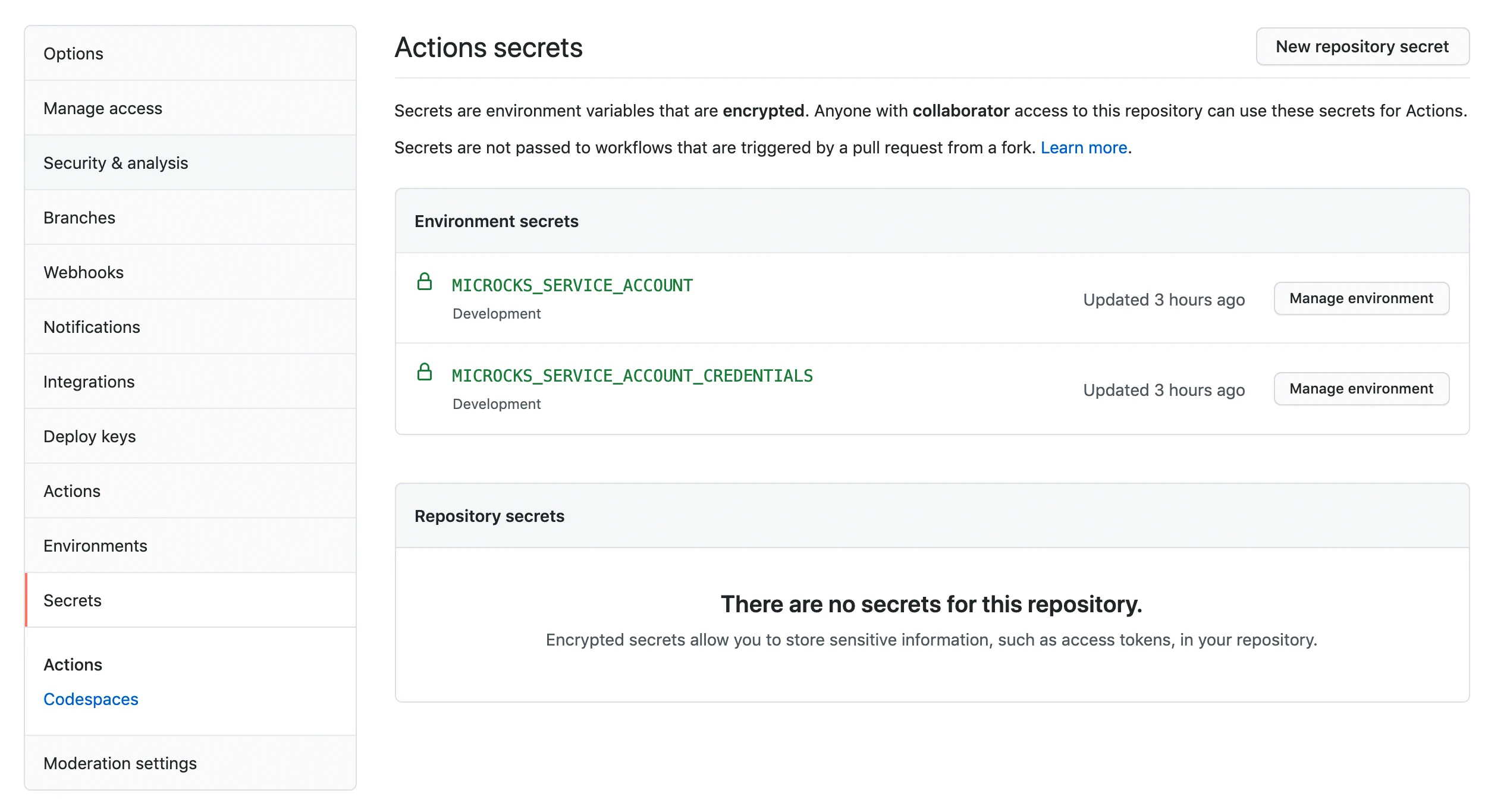

It’s a best practice to use GitHub Secrets (general or tied to Environment like in the example) to hold the Keycloak credentials (client Id and Secret). See below the Secrets configuration we’ve used for the example:

3. Test GitHub Action

The test action, based on the CLI command, needs 3 arguments:

• <apiName:apiVersion> : Service to test reference. Exemple: 'Beer Catalog API:0.9'
• <testEndpoint> : URL where is deployed implementation to test
• <runner> : Test strategy (one of: HTTP, SOAP, SOAP_UI, POSTMAN, OPEN_API_SCHEMA, ASYNC_API_SCHEMA)

And some optional ones tha are the same as the CLI that you may find in the Microcks Test GitHub Action repository.

Step 1 - Configure the Action

Here’s an example below:

name: my-workflow
on: [push]
jobs:
  my-job:
    runs-on: ubuntu-latest
    environment: Development
    steps:
      - uses: microcks/test-github-action@v1
        with:
          apiNameAndVersion: 'API Pastry - 2.0:2.0.0'
          testEndpoint: 'http://my-api-pastry.apps.cluster.example.com'
          runner: OPEN_API_SCHEMA
          microcksURL: 'https://microcks.apps.acme.com/api/'
          keycloakClientId:  ${{ secrets.MICROCKS_SERVICE_ACCOUNT }}
          keycloakClientSecret:  ${{ secrets.MICROCKS_SERVICE_ACCOUNT_CREDENTIALS }}
          waitFor: '10sec'

Step 2 - Configure the Secrets

It’s a best practice to use GitHub Secrets (general or tied to Environment like in the example) to hold the Keycloak credentials (client Id and Secret). See below the Secrets configuration we’ve used for the example:

Wrap-up

You have learned how to get and use the Microcks GitHub Actions. The GitHub actions reuse the Microcks CLI and the Service Account and so it’s definitely worth the read 😉

The most up-to-date information and reference documentation can be found into the repository README.
