Introduction

Whilst we deeply think that “real-world” static values for request/response samples are crucial to fully understanding the business usages and expectations of an API, we have to admit that it is more than often useful to introduce some kind of dynamically generated content for the response.

Those use cases encompass:

• random numbers that may be defined in a range,
• today’s date or today’s + an amount of time (for validity date, for example),
• response part expressed from request part (body part, header, query param)

Thus, Microcks has some templating features allowing the specification of dynamic parts in response content.

Let’s introduce this new feature with an example: a simple Hello API that takes a JSON payload as the request payload and returns a Greeting response including the message’s ID, the date of message generation, and the message content itself, which is just saying Hello !.

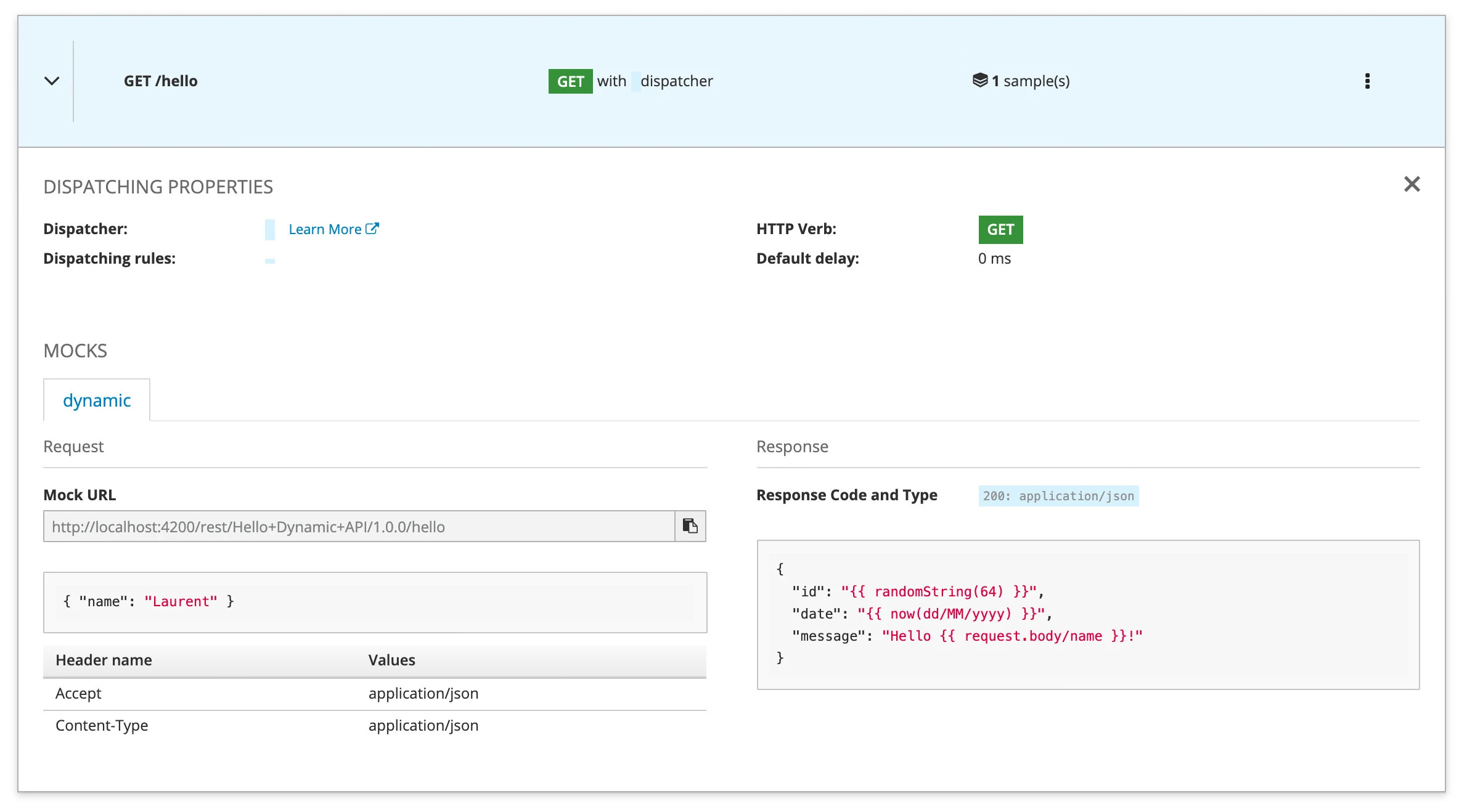

You can find the OpenAPI v3 contract of this API here, and here’s the result once imported into Microcks:

You’ll notice that the response payload is expressed using some templating mustaches ({{ and }}) that indicate here that Microcks should recognize the delimited expression and replace it with new values.

When invoked twice with different params at different dates, here are the results:

  curl -XGET http://microcks.example.com/rest/Hello+Dynamic+API/1.0.0/hello -H 'Content-type: application/json' \
    -d '{"name": "World"}' -s | jq .

{
  "id": "pQnDIytzeYJFLxaQg56yObw0WTpYNBMjPYu7FLBoNSGF6ZJsTcHov5ZmaiWG8Gt8",
  "date": "10/02/2020",
  "message": "Hello World!"
}

Wait for a day…

  curl -XGET http://microcks.example.com/rest/Hello+Dynamic+API/1.0.0/hello -H 'Content-type: application/json' \
    -d '{"name": "Laurent"}' -s | jq .

{
  "id": "Hn9lUKkzYsvQq98wDEHa7Ln3H4eVfnfpJLLPPe4ns9vBgaTRvblOOBHIVq3BluEC",
  "date": "11/02/2020",
  "message": "Hello Laurent!"
}

Here we are: 1 sample definition but dynamic content generated on purpose!

Few concepts

Let’s explain the few concepts behind Microcks’ templating features. These are really simple and straightforward:

• An expression should be delimited by mustaches like this: {{ expression }}. This pattern can be included in any textual representation of your response body content: plain text, JSON, XML, whatever… Microcks will just replace this pattern with its evaluated content or null if evaluation fails for any reason,
• An expression can be a reference to a context variable. In this case, we use a . notation to tell which property of this variable we refer to. Built-in contextual information is attached to the variable named request so we may use expressions like request.body, for example,
• An expression can also be a function evaluation. In this case, we use a () notation to indicate the function name and its arguments. For example, we use randomString(64) to evaluate the random string generation function with one arg being 64 (the length of the desired string),
• An expression may also include > redirect character so that the result from a first evaluation is injected as an extra argument on the next function. For example, you may use uuid() > put(myId). So that result from uuid() function is printed out and also injected as the second argument of the put() function so that this will be stored within the myId context variable,

Pretty easy. No? 🎉

You can check the Mock Templates reference to get a full list of available variables and function expressions.
