Laurent Broudoux (@lbroudoux)
MicrocksIO founder - on Jan 28, 2021

The purpose of this post is to explain the advanced dispatching and constraint features available when mocking a REST API using Microcks. As I recently went again through the documentation answering questions on our Zulip chat, I realized that all the pieces were present but we did not have any overall example showing how to use them!

So I setup this new example based on a real life use-case our community users have submitted. It is based on a very simple WeatherForecast API that has just one GET endpoint for fetching the forecast. This endpoint has two query parameters:

  • region (one of the four cardinal points) allows to specify the zone to fetch,
  • apiKey is a parameter allowing to identify API caller and apply tracing, rate limits and so on…
Photo by Jordan Madrid on Unsplash

We’ll see how to configure advanced mocking rules in Microcks so that requests will be routed to correct responses based on region value and apiKey will be checked as mandatory even if we do not care of the actual value. If user specified an unknow region, the mock should return a fallback response.

Let’s start!

Let’s start by importing the below OpenAPI contract into your running Microcks instance. As this is a GitHub gist you may easily retrieve it. If you already have many APIs in the repository, you’ll find this one having the name WeatherForecast API with version 1.0.0.

Some important things to notice in this OpenAPI specification:

  • There’s a single GET operation definition starting at line 16,
  • We defined north, east, west and south examples for 200 response - see lines 50 to 74 - as well as examples with the same names for region query parameter - see lines 23 to 29,
  • We defined an unknown example for the 404 response - see lines 82 and 83 - as well as an example with same name for query parameter - see line 21,
  • We defined an apiKey query parameter starting at line 37 but did not specify any example as it makes no sense for random values.

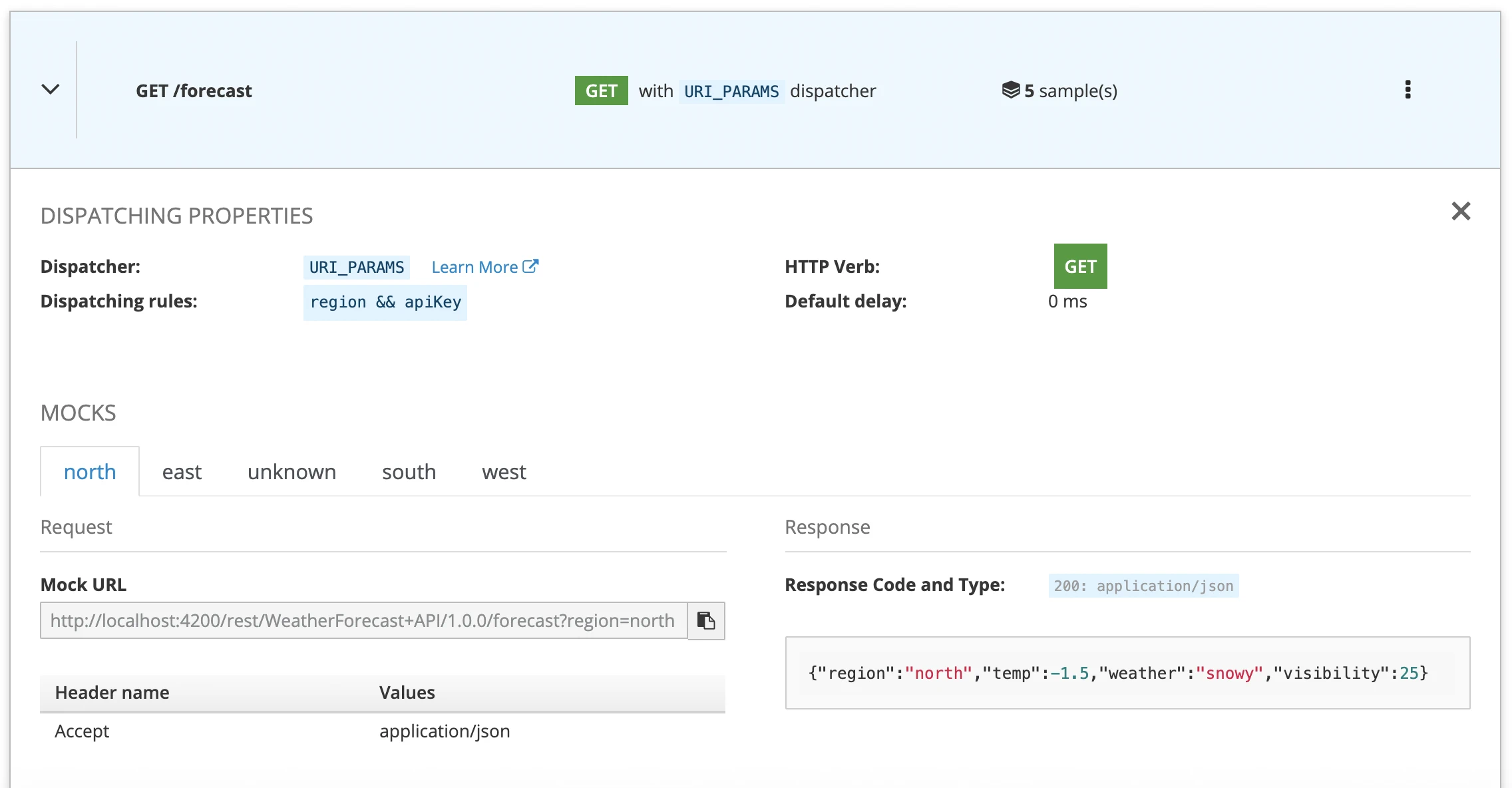

Once imported into Microcks, you should have the same result as below screenshot:

advanced-dispatching-constraints-init

Some important things to notice here on how Microcks has interpreted the data coming from the OpenAPI specification:

  • It has inferred that this dispatcher will be based on URI_PARAMS (see Using Exposed Mocks for introduction on dispatchers),
  • Is has inferred that this dispather will take care of two parameters being region and apiKey,
  • It has discovered 5 request/response sample pairs (see OpenAPI Usage Conventions for detailed explanations). Each request is holding an example Mock URL for invoking it.

As soon as it has been imported, new mock endpoints are available and you can start playing around with the mocks like illustrated with below commands:

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=east -k -s | jq .
{
  "region": "east",
  "temp": -6.6,
  "weather": "frosty",
  "visibility": 523
}

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=north -k -s | jq .
{
  "region": "north",
  "temp": -1.5,
  "weather": "snowy",
  "visibility": 25
}

OK! So the default is working pretty well but we’ll need to add our constraint related to apiKey and manage our fallback response as well ๐Ÿ˜‰

Adding constraint

We need to add constraint on apiKey query parameter so that requests that do not have this parameter will be refused by Microcks. In Microcks you can easily add constraints to an operation when accessing the Edit Properties page from API summary. You’ll just need to have the manager or admin role assigned.

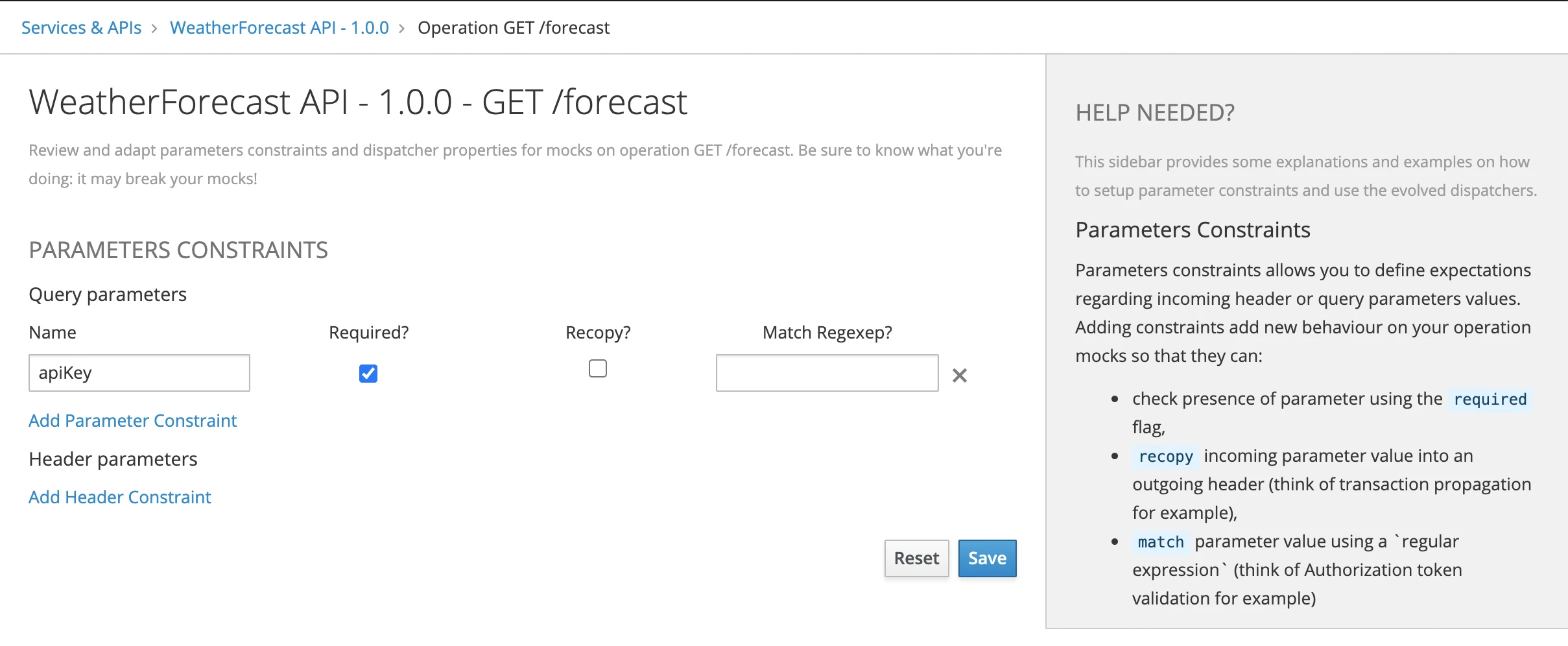

Once on the properties edition for the GET /forecast operation, add a new constraint like illustrated below:

advanced-dispatching-constraints-add-constraint

Do not forget to hit the Save button and then you can re-try calling a mock endpoint:

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=east -k
Parameter apiKey is required. Check parameter constraints.%

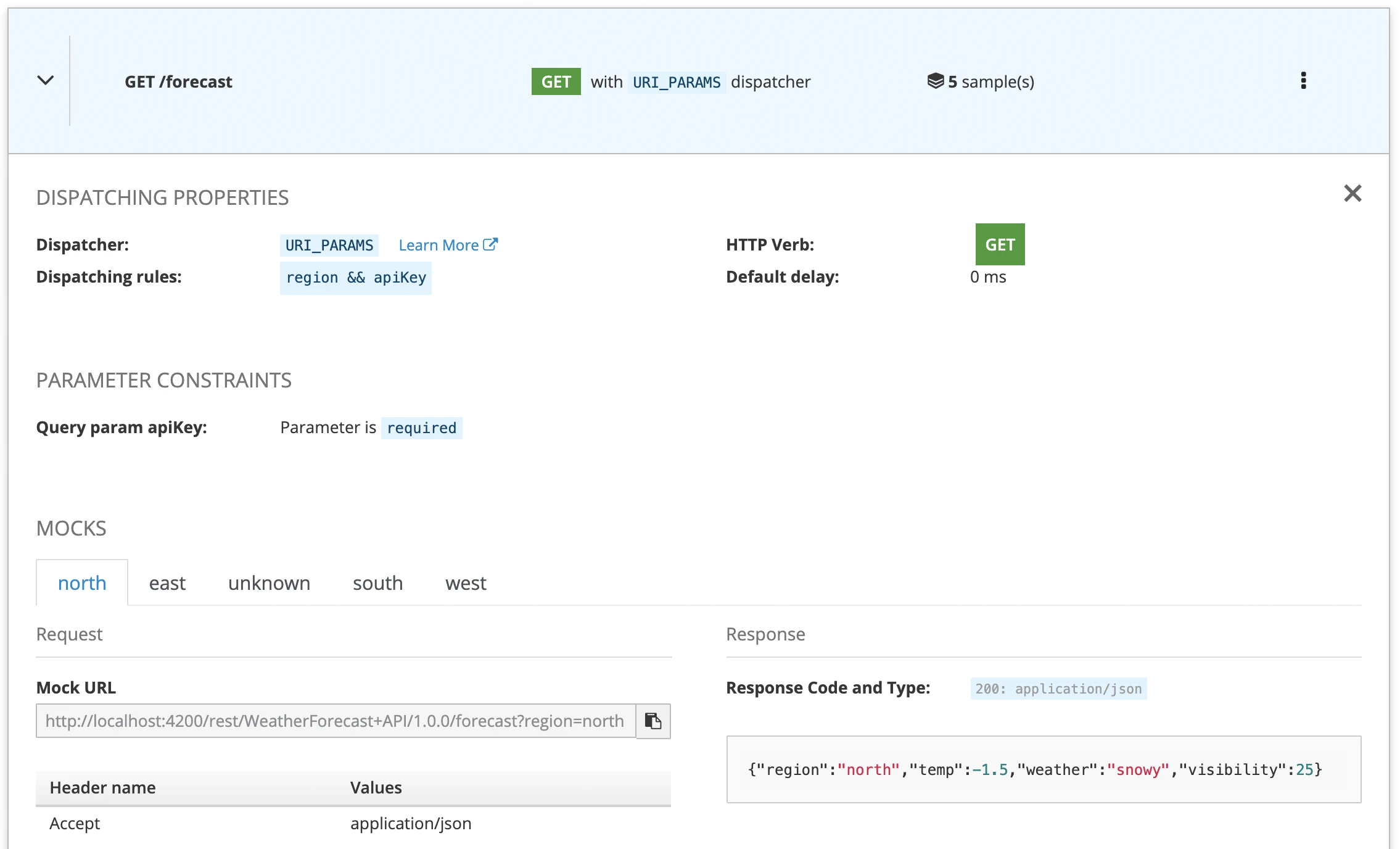

๐ŸŽ‰ Perfect! Our constraint now applies correctly. Getting back on the API summary page and looking at the operation details, you’ll see that a new Parameter Constraints block has appeared explaining the constraint:

advanced-dispatching-constraints-constraint-added

So far so good but now let’s try adding the apiKey parameter to our requests:

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=east\&apiKey\=qwertyuiop -k -s | jq .
{
  "region": "north",
  "temp": -1.5,
  "weather": "snowy",
  "visibility": 25
}

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=west\&apiKey\=qwertyuiop -k -s | jq .
{
  "region": "north",
  "temp": -1.5,
  "weather": "snowy",
  "visibility": 25
}

Seems to be OK at first sight but wait… we are now receiving the same response whatever the requested region! What the hell!? ๐Ÿง

Adjusting dispatcher rules

The problem is now that we supply apiKey and remember that apiKey belongs to the dispatching rules. When receiving a request, Microcks is looking for a response associated to the qwertyuiop value for apiKey and because we do not have defined examples for apiKey it finds nothing… Its fallback behaviour is then to answer with the first response it finds - here the north response.

From there you have two options:

  • Define a set of possible values for apiKey within the OpenAPI specification examples. This will add complexity and a number of examples to manage if you’re managing combinations of parameters,
  • Simply tall Microcks to not worry about the apiKey value when dispatching to a response. This makes a lot of sense here as this parameter is purely technical!

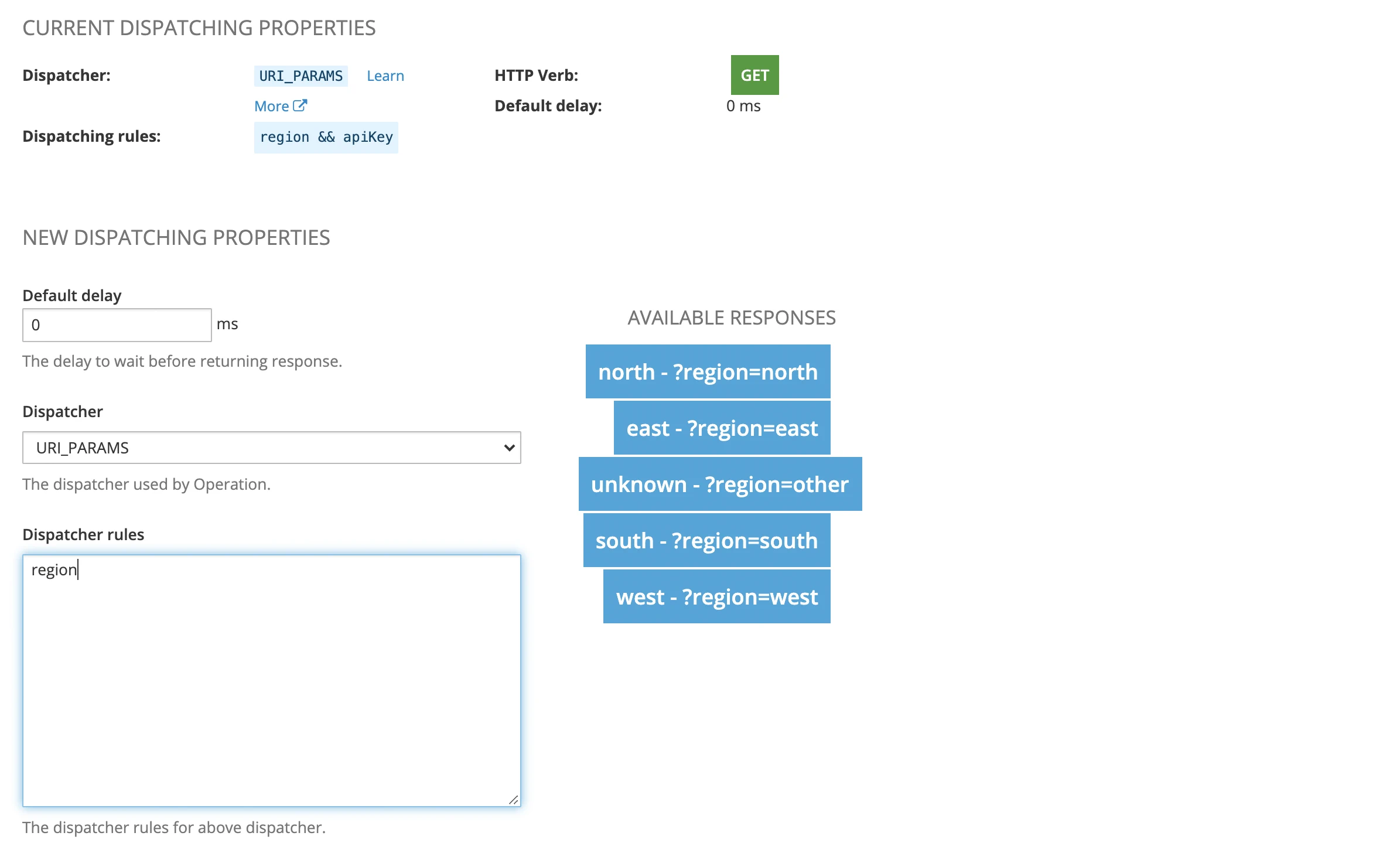

Obviously we choose the second option and get back to the Edit Properties page for this operation. Just below the parameter constraints we have used previously, we have the ability to change the dispathing properties. We’ll simply tell Microcks to keep the current dispatcher but we’ll adapt the rules to only let region as the sole dispatching criterion:

advanced-dispatching-constraints-adapt-rules

Once saved, you will be able to test again the different mock URLs for the four regions and you’ll see that now you’re getting the response associated with each requested region:

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=west\&apiKey\=qwertyuiop -k -s | jq .
{
  "region": "west",
  "temp": 12.2,
  "weather": "rainy",
  "visibility": 300
}

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=south\&apiKey\=qwertyuiop -k -s | jq .
{
  "region": "south",
  "temp": 28.3,
  "weather": "sunny",
  "visibility": 1500
}

๐ŸŽ‰ Excellent! We solved our routing issue. But let’s try now with an unknown center region:

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=center\&apiKey\=qwertyuiop -s | jq .
{
  "region": "north",
  "temp": -1.5,
  "weather": "snowy",
  "visibility": 25
}

We still got default fallback response because Microcks cannot find any response associated with the center region… ๐Ÿคจ

Changing dispatcher

In order to address our final requirement - having a proper 404 response if region is unknown - we will have to change the dispatcher that was inferred by Microcks. Let’s get back to the Edit Properties page for the operation once again and now change the dispatcher to FALLBACK value. You’ll see documentation appearing on the right with the ability to copy-paste the example.

The FALLBACK dispatcher is a new feature from 1.2.0 release. Depending on the day you are reading this post it may be possible that the realease it not yet available. If you need it urgently please use the latest version of Microcks. This feature is already enabled there and will be available till 1.2.0 announcements.

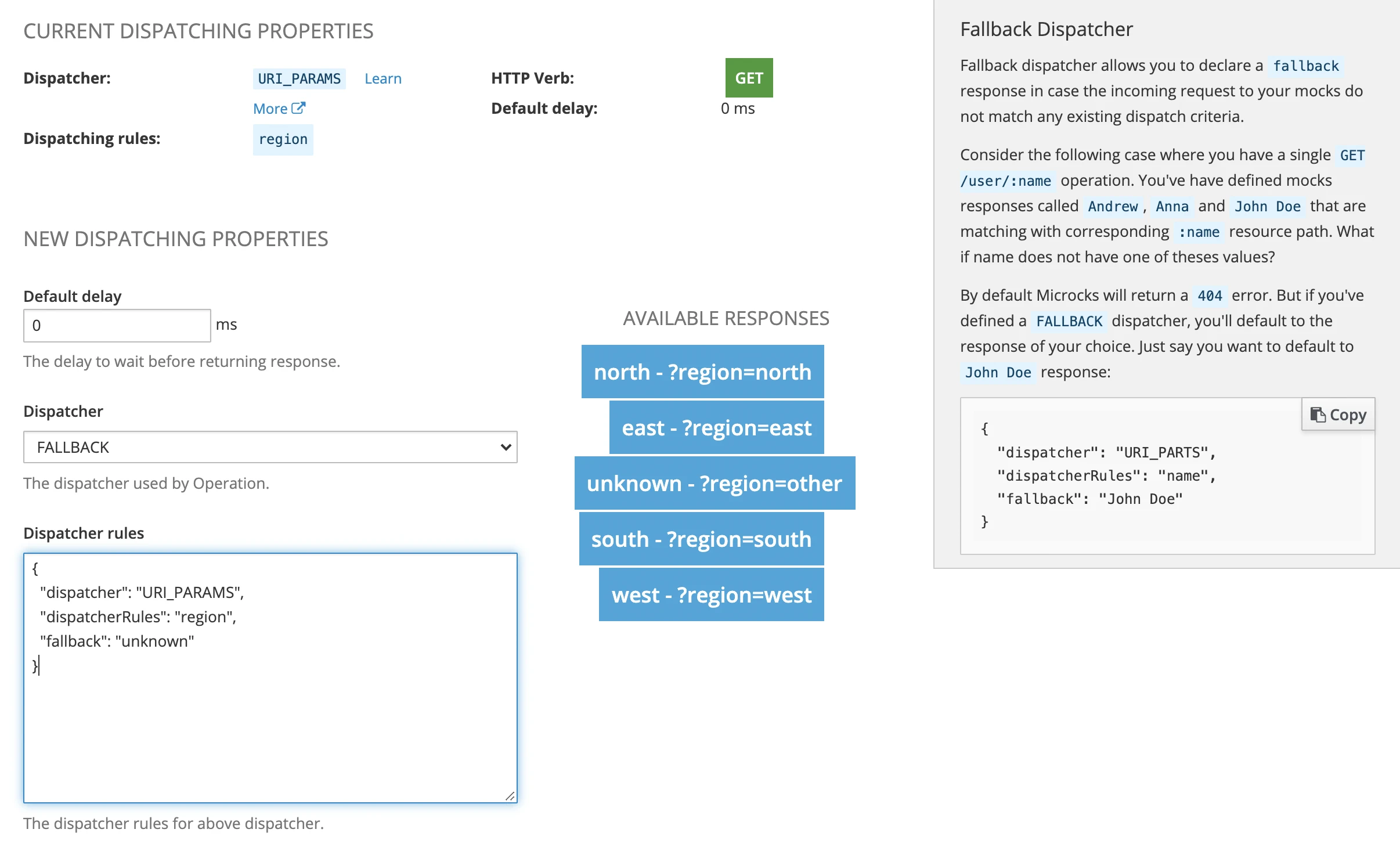

The FALLBACK dispatcher behaves kinda like a try-catch wrapping block in programming: it will try applying a first dispatcher with its own rule and if it find nothings it will default to the fallback response. Configure this dispatcher as shown below: picking the unknown response as the one representing our fallback.

advanced-dispatching-constraints-adapt-dispatcher

Hit the Save button and test again the previous curl command, you’ll see that you’re now receving the 404 response called unknown:

$ curl https://microcks.apps.example.com/rest/WeatherForecast+API/1.0.0/forecast\?region\=center\&apiKey\=qwertyuiop -k
Region is unknown. Choose in north, west, east or south.%

๐ŸŽ‰ TADAM! Now when getting back the API summary page and checking the GET /forecast operation details, you’ll see that dispatcher and dispatchin rules have been updated to display your new configuration:

advanced-dispatching-constraints-final

Wrap-up

In this blog post, we walked through a near real-life sample explaining Microcks default dispatching engine as well as advanced customizations available. We saw that default configuration deduced only from the OpenAPI specification is a great start but does not allow to handle more advanced scenario where we need little smartness. Microcks is proposing advanced constructs for Parameters Constraints and Dispatching Rules: we only scratched the surface here!

You may think that setting up these configuration may be cumbersome but remember that you’ll only have to do it once! Microcks will keep your customizations upon subsequent imports - as long as you keep the same operation name of course ๐Ÿ˜‰

As a primer on what’s coming next on Microcks, we plan to integrate some OpenAPI Specifications Extensions so that these customizations could live directly within the specification file:

paths:
  /forecast:
    get:
      operationId: GetForecast
      summary: Get forecast for region
      x-microcks-dispatcher: FALLBACK
      x-microcks-dispatcherRules:
        dispatcher: URI_PARAMS
        dispatcherRules: region
        fallback: unknown

If interested in this feature, do not hesitate commenting or voting for the GitHub issue!

Take care and stay tuned. โค๏ธ
